• P235/75R17 all-terrain BSW tires
• 17" grey styled steel wheels
• Full-size spare tire w/lock, underframe winch-type carrier, safety catch
• Painted argent front bumper w/black lower valance & upper fascia
• Argent rear step bumper
• Black front/rear stone cuffs
• Outer scuff pad
• Black grille surround w/black "bar style" insert
• Cargo lamp integrated w/high mount stop light
• Black manual side mirrors
• Fixed rear window
• Rear solar tint glass
• Variable speed intermittent wipers
• Black door & tailgate handles
• Removable tailgate w/key lock & lift assist

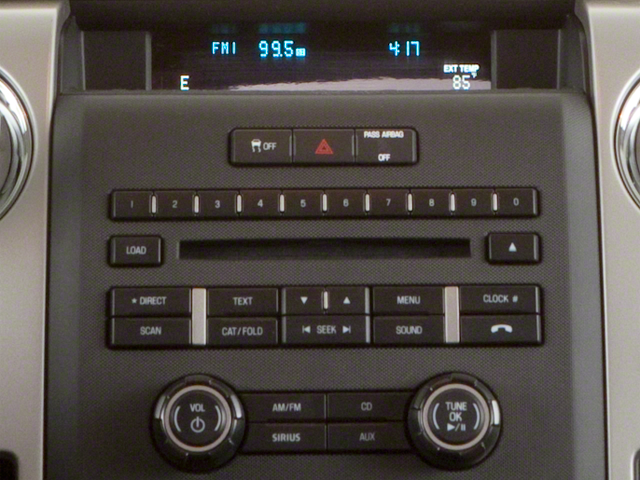

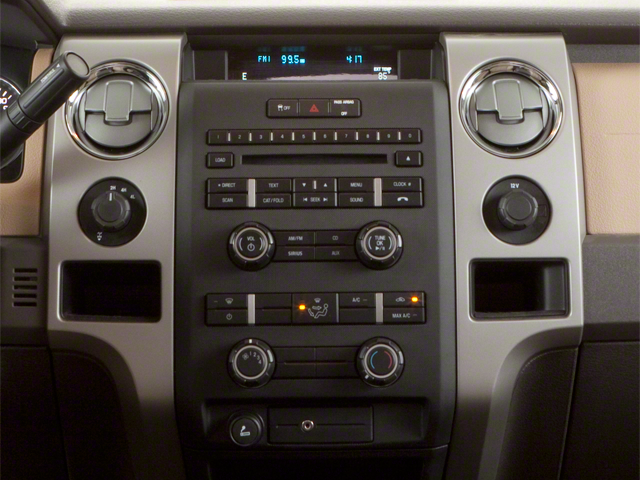

• AM/FM stereo w/clock

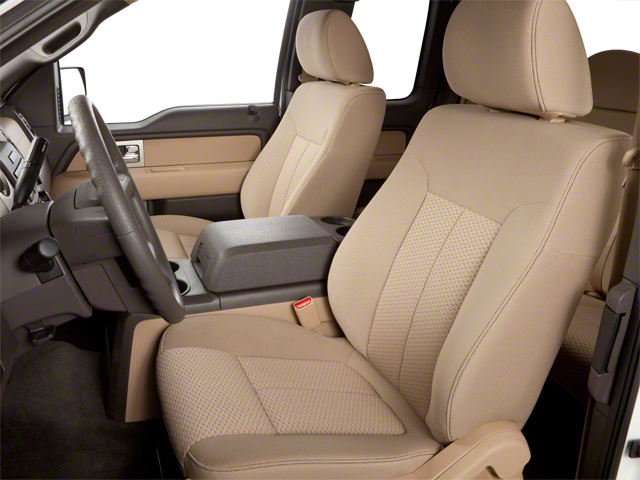

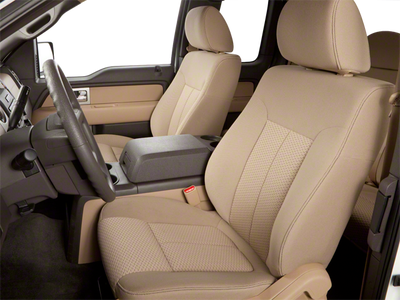

• Vinyl 40/20/40 split bench front seat

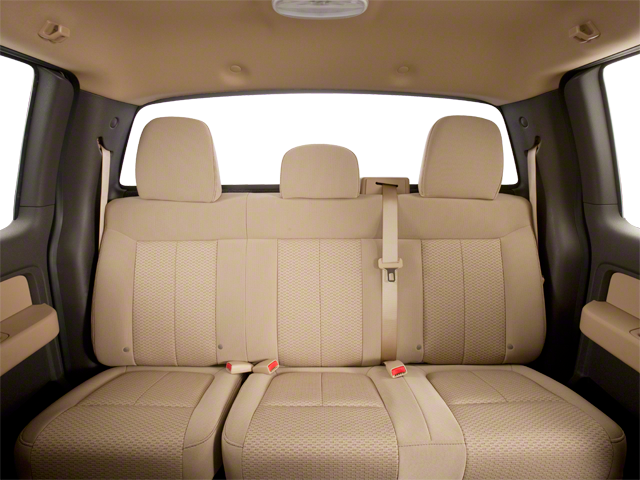

• 60/40 flip-up rear split bench seat
• Black vinyl floor covering (N/A w/47R Floor Mats)
• Driver & front passenger door scuff plates

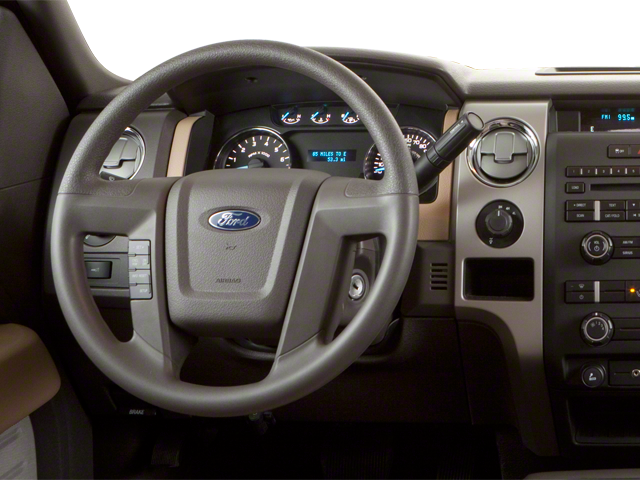

• Gray urethane steering wheel
• Tilt steering column
• Display center -inc: warning messages & text functions
• SecuriLock anti-theft ignition (PATS)
• Manual air conditioning
• Black ring w/black vanes air conditioning registers

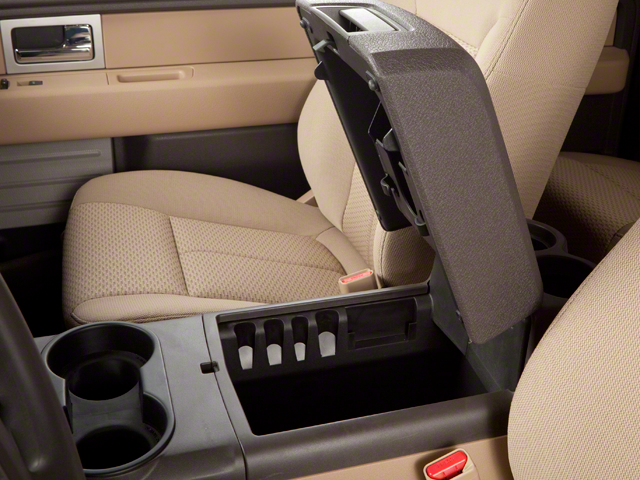

• Floor console cupholder
• Rear door cupholders
• Instrument panel mounted cigar lighter
• Front pwr point
• Rear pwr point
• Sunvisors w/driver side strap, front passenger mirror
• Front passenger side A-pillar grab handle

• Anti-lock braking system (ABS)
• AdvancTrac w/roll stability control (RSC)
• Dual stage driver & front passenger front airbags w/passenger off switch
• Dual stage driver & front passenger seat-mounted side airbags
• Safety canopy front/rear outboard side curtain airbags
• SOS post crash alert system
• Outboard front lap & shoulder safety belts -inc: height adjusters, pretensioners, energy management retractors
• Center front 2-point safety belt
• 3-point safety belts at all rear seat positions
• Rear door child safety locks
• Tire pressure monitoring system
• Dual note horn

IN-DASH COMPUTER BY MAGNETI MARELLI

• in-dash computer w/Microsoft auto operating system
• touch screen
• radio & internet functionality (requires Sprint Broadband service - available at Ford coporate rate)
• wireless keyboard
• wireless mouse
• Garmin navigation system

TRAILER TOW PKG

• class IV trailer hitch receiver
• 7-pin wiring harness
• upgraded radiator
• aux trans oil cooler

CARGO MANAGEMENT ACCESSORY

• (2) pickup box storage bins

COLOR-COORDINATED CARPET

• carpeted front & rear floor mats

CARGO MANAGEMENT RAILS

• (2) side rails
• (4) tie-down cleats

• Order Code 502A: 4-Speed Automatic Transmission with Overdrive; Vinyl 40/20/40 Front Seat; 17" Gray Styled Steel Wheels; 4.6L 2V EFI V8 Engine; 6
• 850 lbs Payload Package GVWR; 3.73 Axle Ratio; AM/FM Stereo/clock Radio; P235/75R17 BSW A/T (5) Tires
• In-Dash Computer by Magneti Marelli
• Trailer Tow Package
• Cloth Captain's Chairs
• 2 Pickup Box Storage Bins
• Cruise Control
• Color-Coordinated Carpet with Carpeted Floor Mats
• Cargo Management Rails
• 3.55 Axle Ratio
• Full service internet access
• Cruise control with steering wheel mounted controls
• Integrated navigation system
• Part-time 4WD

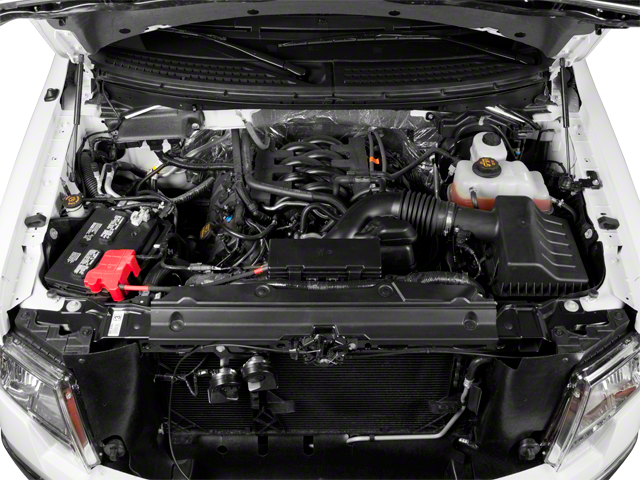

• Triton 4.6L V-8 regular unleaded
• engine with 292HP
• Triton 4.6L V-8
• Mechanical
• SecuriLock immobilizer
• Bluetooth® handsfree wireless device connectivity
• Trailer sway control
• Electronic stability control system with anti-roll
• 3 12V power outlets
• Manual tilting steering wheel
• Metallic paint
• Wheel hub covers
• 17 x 7.5-inch front and rear gray styled steel wheels
• P235/75SR17 AT BSW front and rear tires
• 6 airbags
• Driver front impact airbag
• Seat mounted side impact driver airbag
• Curtain first and second-row overhead airbags
• Passenger front impact airbag
• Seat mounted side impact front passenger airbag
• Airbag occupancy sensor
• Driver and passenger head protection airbag
• 6-speed automatic
• Selectable mode transmission
• Manual climate control
• Rear under seat climate control ducts
• Transmission electronic control
• Automatic
• Reflector headlights
• Halogen headlights
• Driver seat with 4-way directional controls
• Manual driver seat lumbar
• Front seat center armrest
• Front passenger seat with 4-way directional controls
• 4-wheel disc brakes
• 4-wheel antilock (ABS) brakes
• Split-bench rear seat
• Fold-up rear seat cushion
• 60-40 folding rear seats
• Four-wheel drive
• Trailer wiring harness
• Class IV tow rating
• Trailer hitch
• Front beverage holders
• Front height adjustable seatbelts
• Front seatbelt pretensioners
• Basic warranty: 36 month/36
• 000 miles

• Mileage
• Fuel Economy Est-Combined (MPG): 16
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): 18
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): 155
• Maximum Alternator Capacity (amps): 135
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3600
• Gross Axle Wt Rating - Rear (lbs): 3850
• Curb Weight - Front (lbs): 3134
• Curb Weight - Rear (lbs): 2211
• Gross Vehicle Weight Rating Cap (lbs): 6850
• Gross Combined Wt Rating (lbs): 11100
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Leaf Spring
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: Double Wishbone
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 3.55
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.55
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: T7B
• Rear Tire Order Code: T7B
• Spare Tire Order Code: T7B
• Front Tire Size: P235/75R17
• Rear Tire Size: P235/75R17
• Spare Tire Size: P235/75R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x - TBD -
• Rear Wheel Size (in): 17 x - TBD -
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 20.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 47.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 144.5
• Length, Overall w/o rear bumper (in): 231.7
• Width, Max w/o mirrors (in): 78.9
• Height, Overall (in): 71.5
• Overhang, Front (in): 38.5
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 145
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.8
• Cargo Box Width @ Top, Rear (in): 65.2
• Cargo Box Width @ Floor (in): 65.2
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 22.4
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): - TBD -
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.4
• Front Shoulder Room (in): 66.6
• Front Hip Room (in): 60.5
• Second Head Room (in): 39.6
• Second Leg Room (in): 33.4
• Second Shoulder Room (in): 66.7
• Second Hip Room (in): 66.6
• Summary

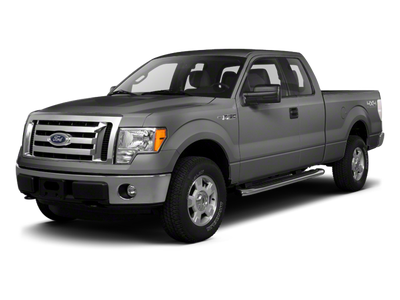

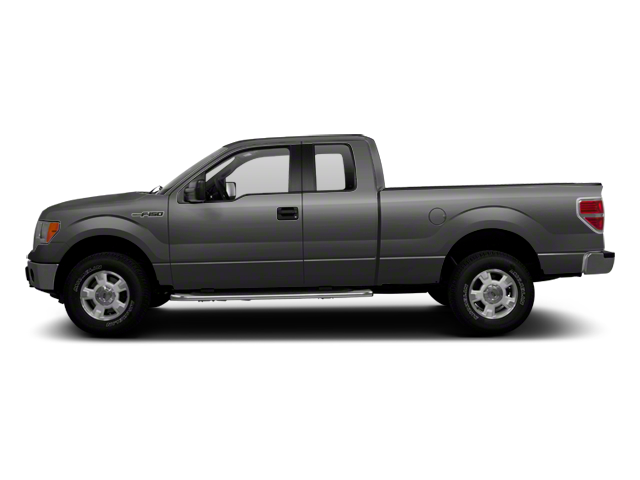

• Vehicle Name: Ford F-150
• Body Style: SuperCab 6.5' Styleside
• Body Code: 145" WB
• Emissions
• EPA Greenhouse Gas Score: 3
• Tons/yr of CO2 Emissions @ 15K mi/year: 11.6
