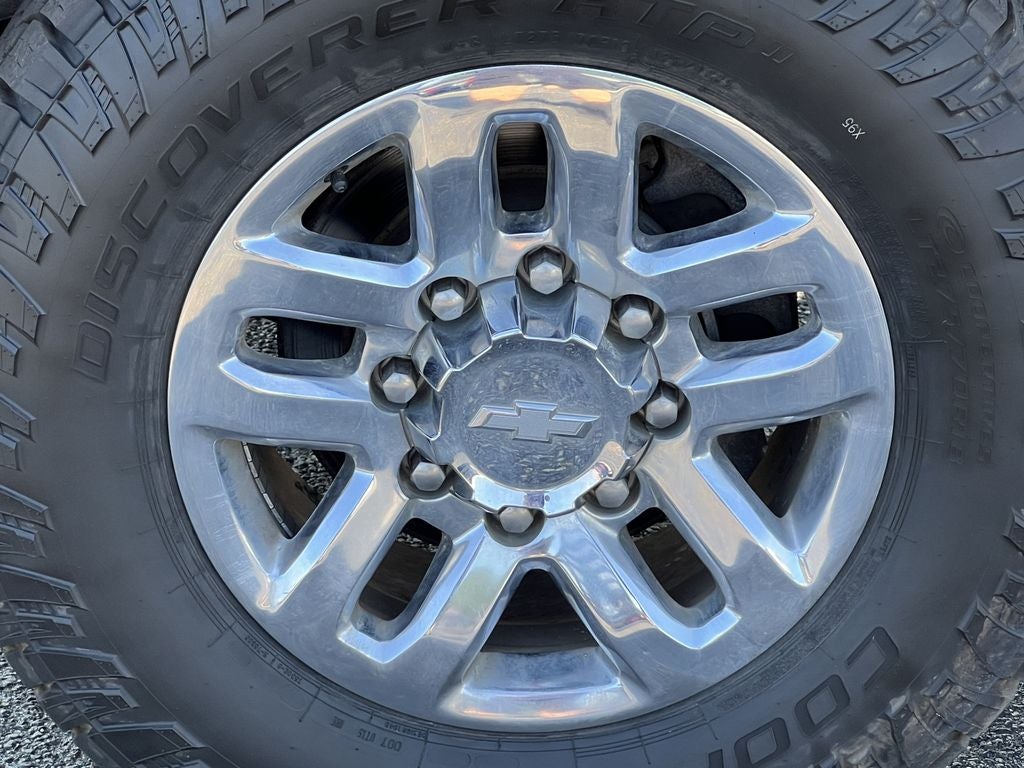

• Wheels, 18" (45.7 cm) chromed aluminum includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered. (Requires single rear wheels.)
• Tires, LT265/70R18E all-season, blackwall (Requires single rear wheels.)
• Tire, spare LT265/70R18E all-season, blackwall (Included and only available with (QWF) LT265/70R18E all-season tires or (QGM) LT265/70R18E all-terrain tires. Available to order when (ZW9) pick-up box delete is ordered.)
• Wheel, 18" x 8" (45.7 cm x 20.3 cm) full-size, steel spare. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered. (Requires single rear wheels. Included with (E63) pickup box. Available to order when (ZW9) pick-up box delete is ordered.)
• Wheelhouse liners, rear (Requires Crew Cab or Double Cab model. Not available with dual rear wheels. Deleted with (ZW9) pickup box delete.)
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door (Not included when (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.)
• Bumper, front chrome
• Bumper, rear chrome with bumper CornerSteps
• CornerStep, rear bumper
• Moldings, bodyside, chrome
• Grille surround, chrome
• Headlamps, halogen projector-beam
• Fog lamps, front, halogen
• Lamps, cargo area, cab mounted with switch on center switch bank

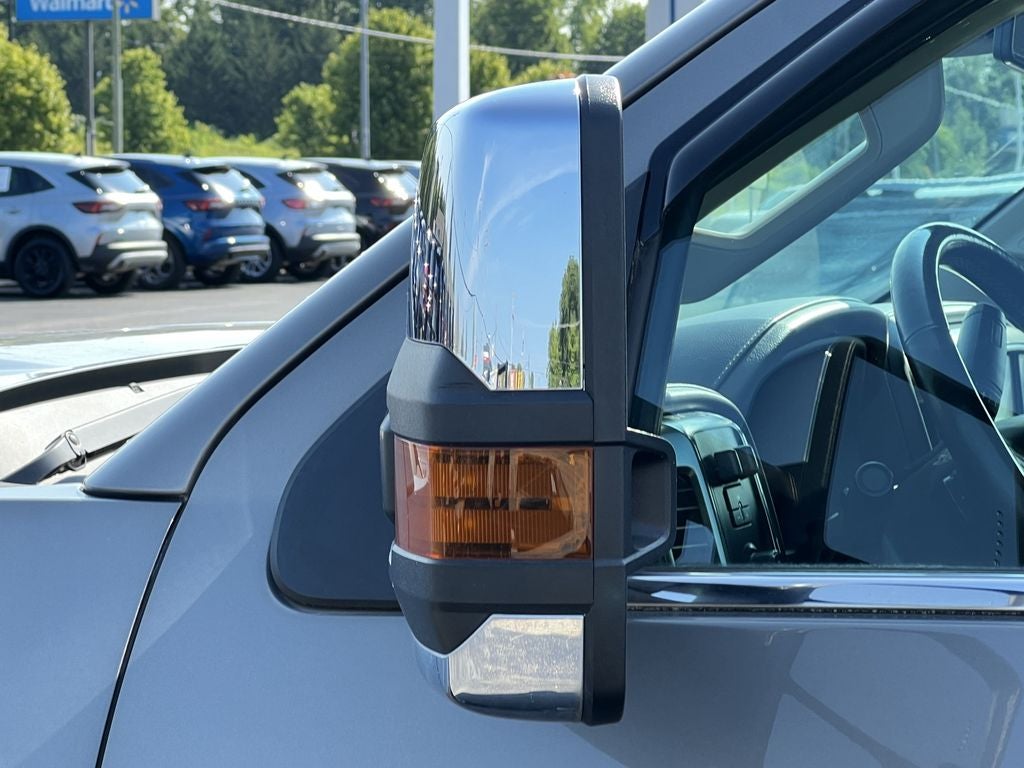

• Mirrors, outside heated power-adjustable vertical trailering, memory-equipped, upper glass, power-folding and manual extending, chrome; includes integrated turn signal indicators, consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
• Glass, deep-tinted
• Window, power, rear sliding with rear defogger on Crew Cab or Double Cab models (If (TRW) Provision for cab roof-mounted lamp or (VYU) Snow Plow Prep Package is ordered (A48) will be deleted.)
• Door handles, chrome
• Tailgate and bed rail protection caps, top
• Tailgate, EZ-Lift and Lower (Deleted when (ZW9) pickup box delete is ordered.)
• Remote Locking Tailgate

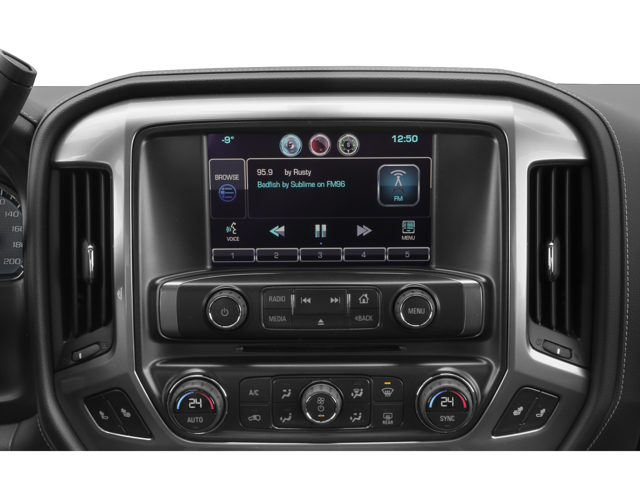

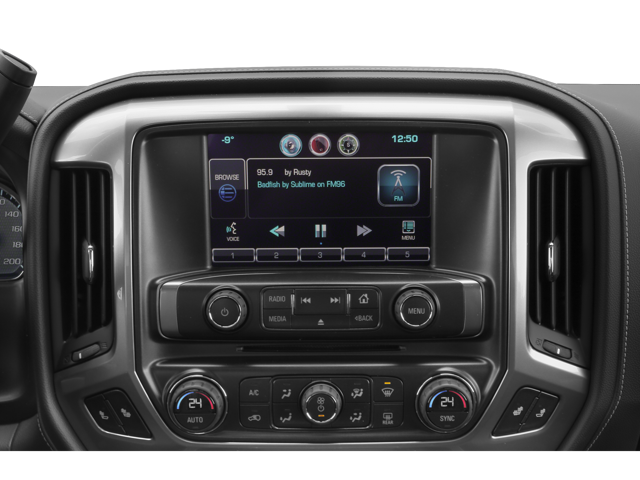

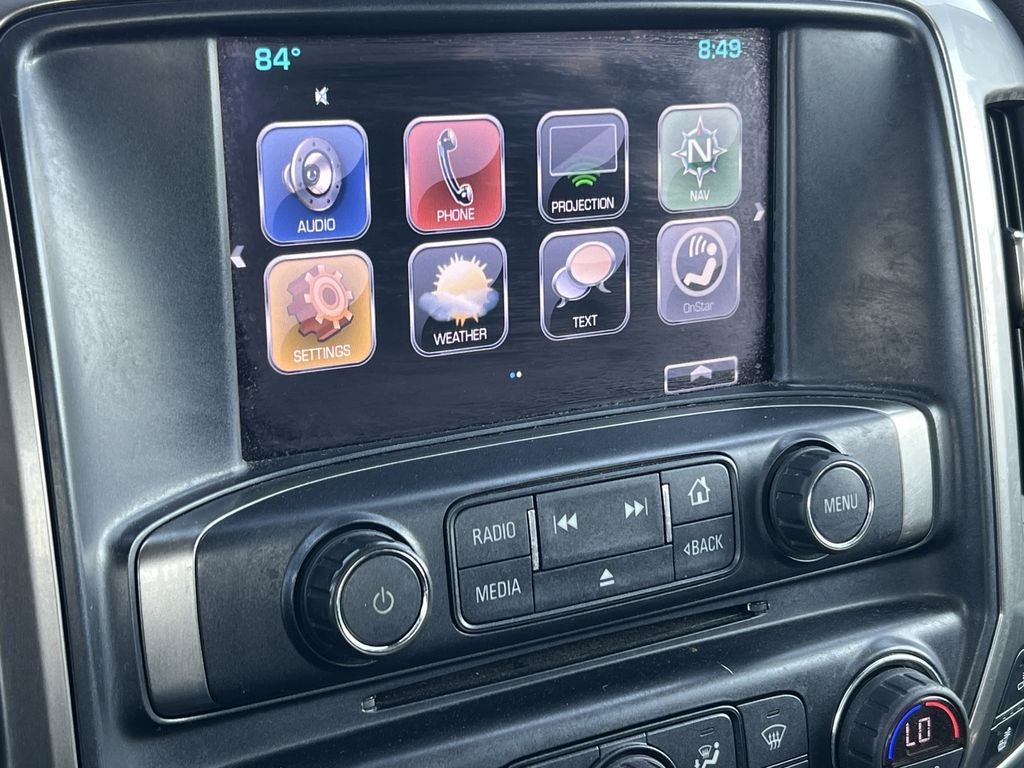

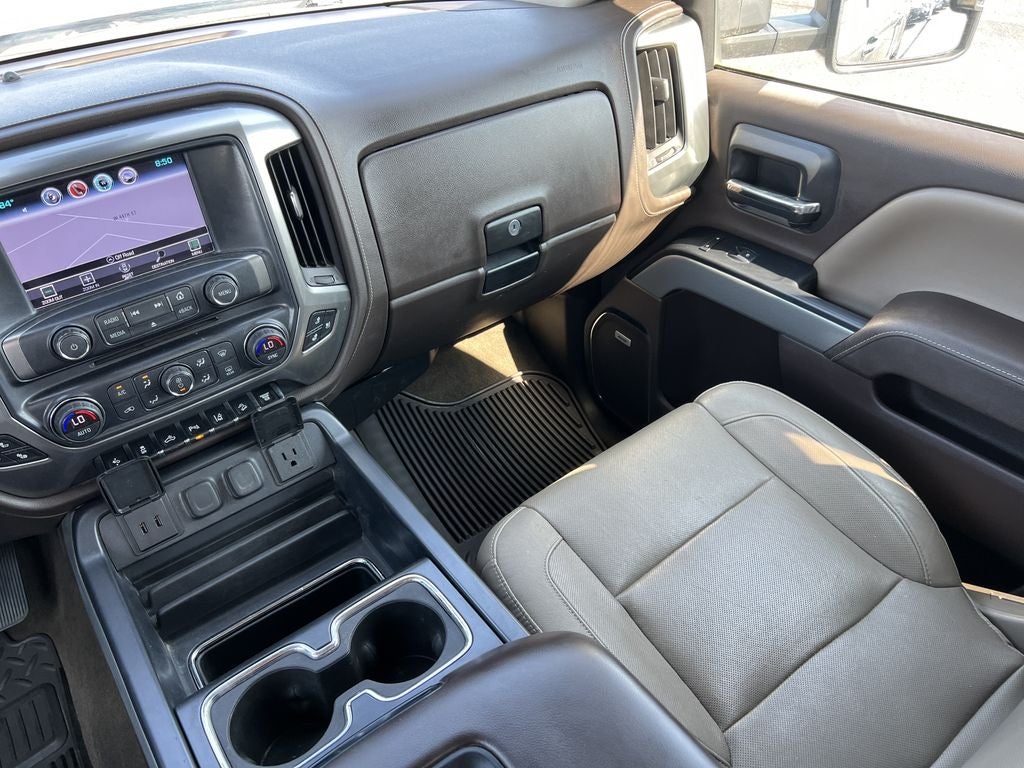

• Audio system, Chevrolet MyLink Radio with 8" diagonal color touch-screen, AM/FM stereo with seek-and-scan and digital clock, includes Bluetooth streaming audio for music and select phones; USB ports; auxiliary jack; voice-activated technology for radio and phone; and Shop with the ability to browse, select and install apps to your vehicle. Apps include Pandora, iHeartRadio, The Weather Channel and more. (Upgradeable to (IO6) Chevrolet MyLink 8" Diagonal Color Touch audio system with Navigation.)
• Single-slot CD/MP3 player (On Crew Cab model replaced by (U42) rear seat DVD/Blu-Ray Entertainment Package when (U42) is ordered.)
• OnStar with 4G LTE and built-in Wi-Fi hotspot connects to the Internet at 4G LTE speeds; includes OnStar Data Trial for 3 months or 3GB (whichever comes first) (Visit www.onstar.com for coverage map, details and system limitations. Services vary by model. OnStar acts as a link to existing emergency service providers. Not all vehicles may transmit all crash data. Available Wi-Fi requires compatible mobile device, active OnStar service and data plan. Data plans provided by AT&T.)
• SiriusXM Satellite Radio is standard on nearly all 2017 GM models. Enjoy a 3-month All Access trial subscription with over 150 channels including commercial-free music, plus sports, news and entertainment. Plus listening on the app and online is included, so you'll hear the best SiriusXM has to offer, anywhere life takes you. Welcome to the world of SiriusXM. (If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. To cancel you must call us at 1-866-635-2349. See our Customer Agreement for complete terms at www.siriusxm.com. All fees and programming subject to change.)
• Radio, HD
• 6-speaker audio system
• Bluetooth for phone personal cell phone connectivity to vehicle audio system

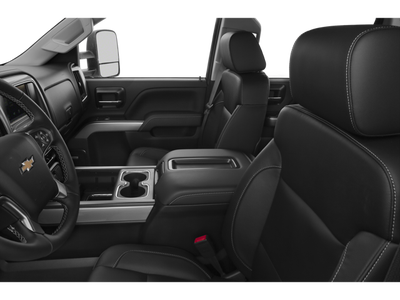

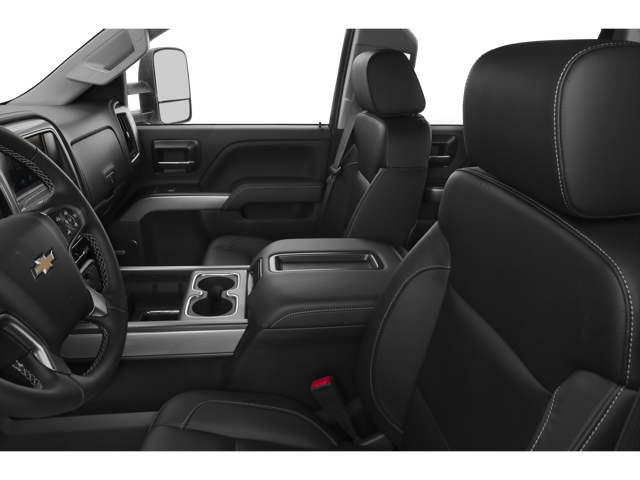

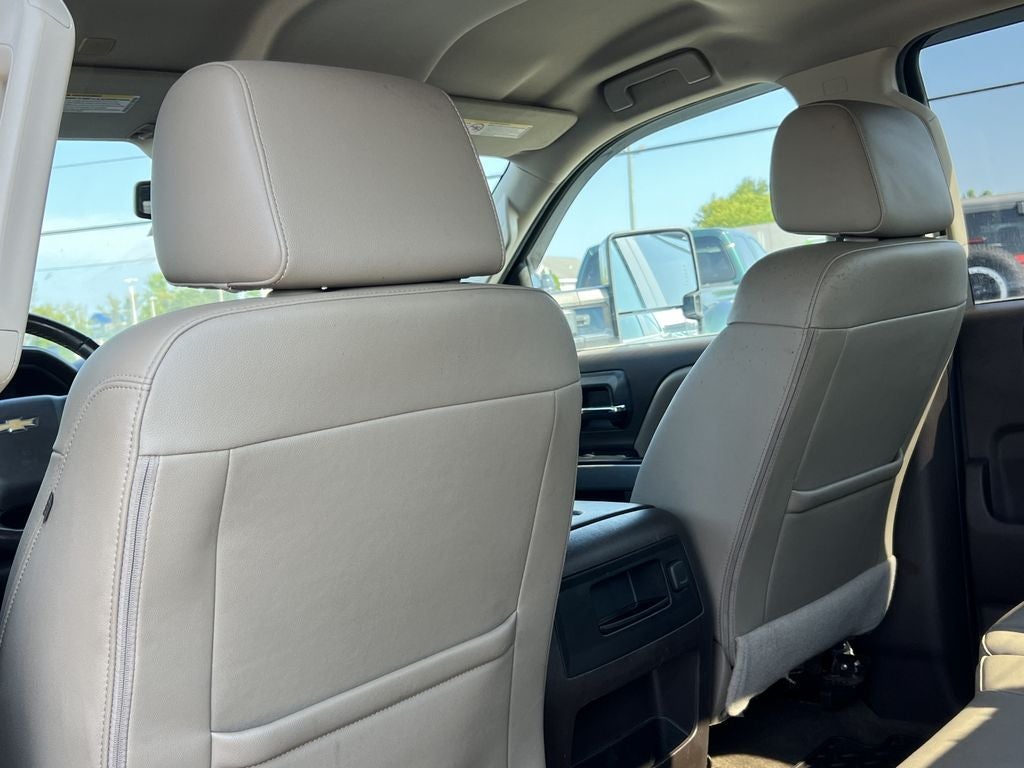

• Seats, front 40/20/40 leather-appointed split-bench, 3-passenger with (KA1) heated seat cushions and seat backs. Includes 10-way power driver and front passenger seat adjusters, including driver/front passenger power recline, driver/front passenger power lumbar, 2-position driver memory and adjustable outboard head restraints. (Upgradeable to (AN3) front full-featured leather-appointed bucket seats.)

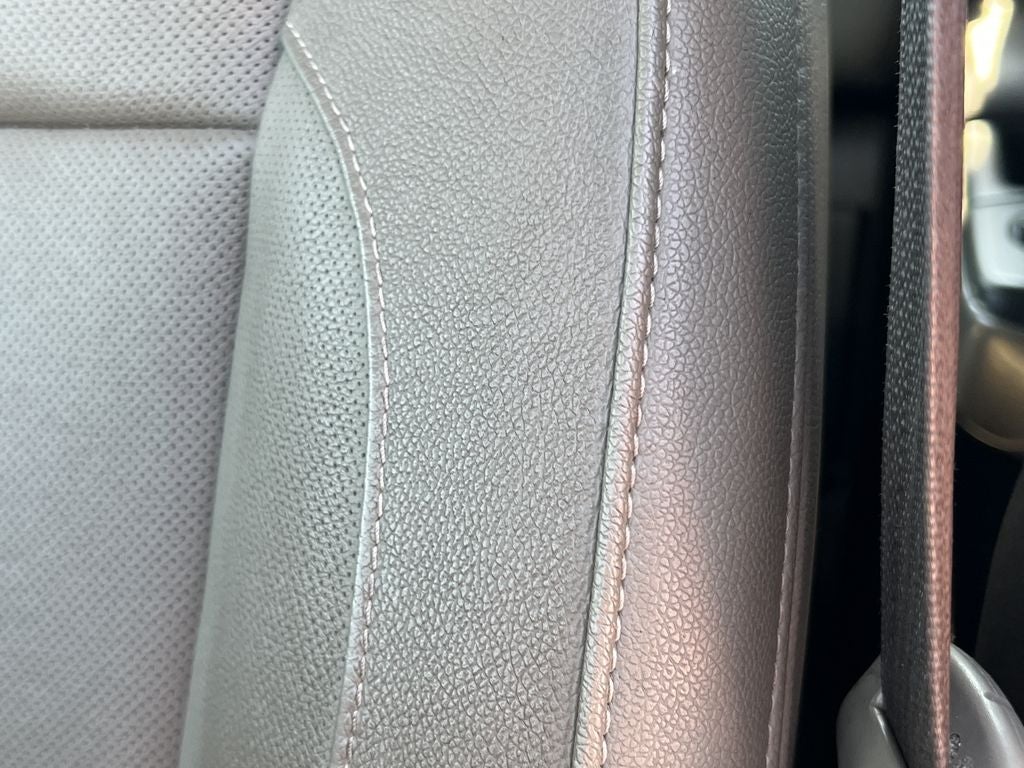

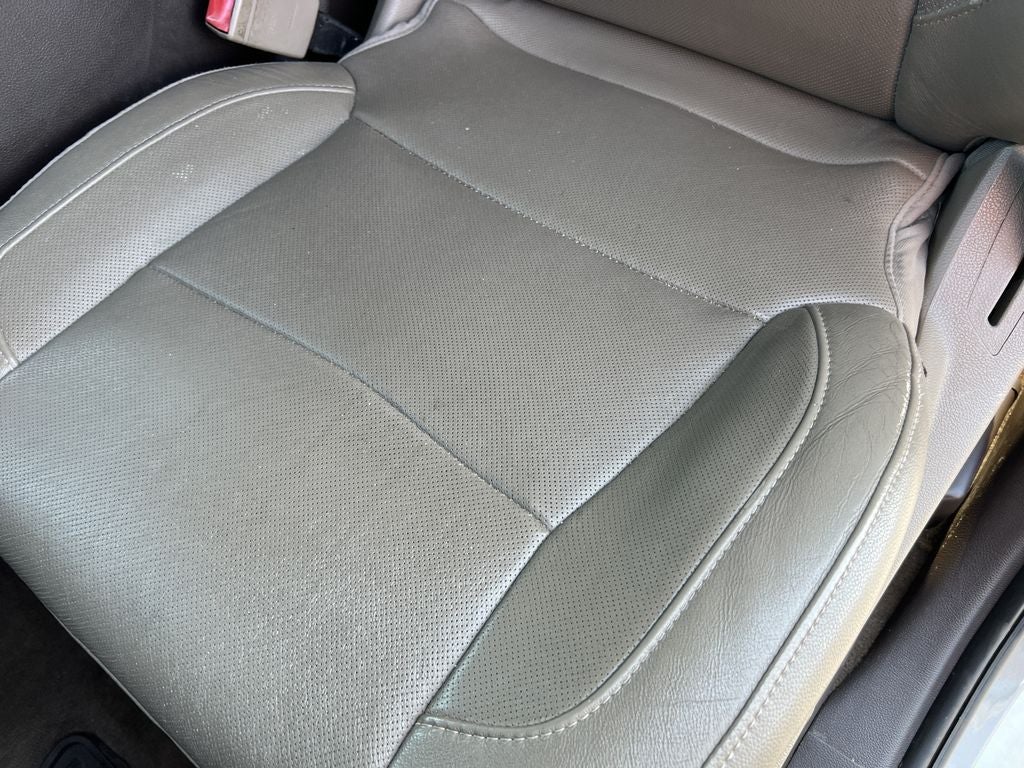

• Seat trim, Leather-appointed front seats
• Seating, heated driver and front passenger Only available on Crew Cab and Double Cab models.

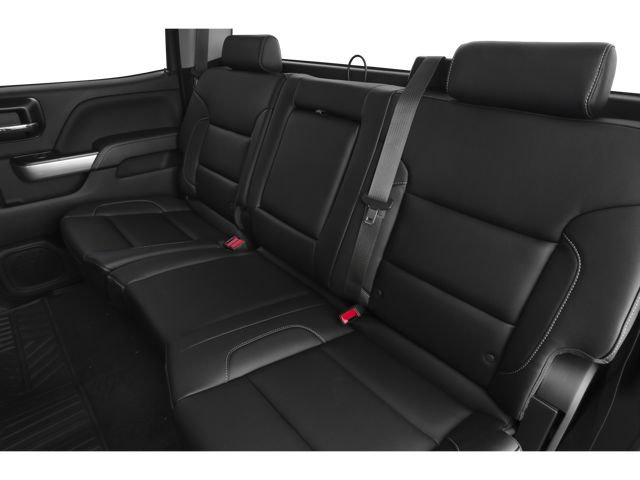

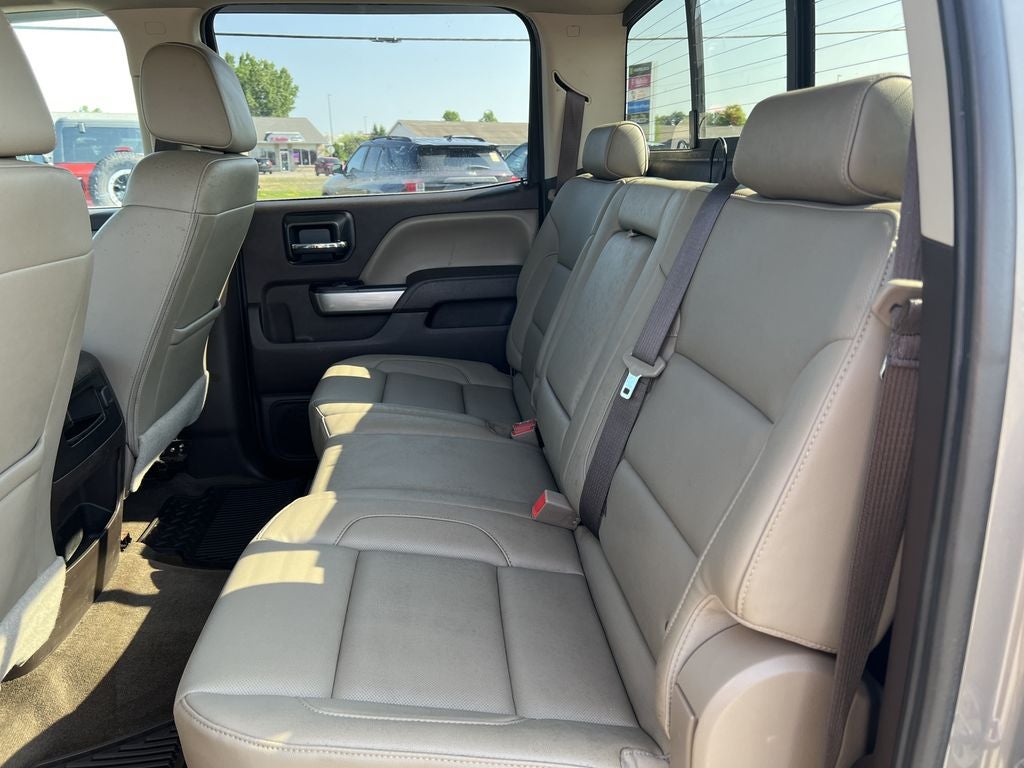

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Double Cab and Crew Cabs include second row floor mats)

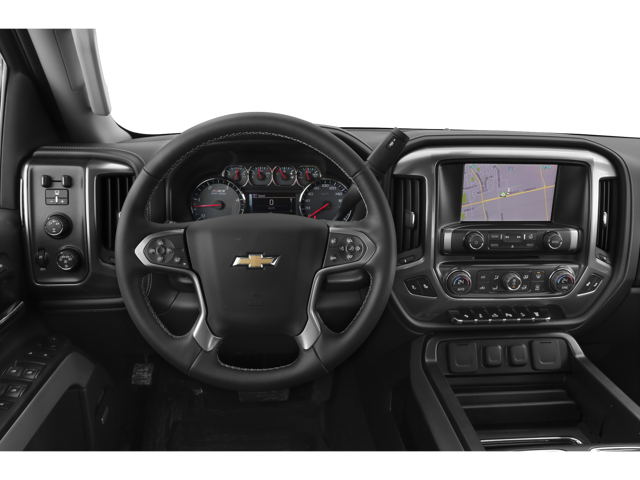

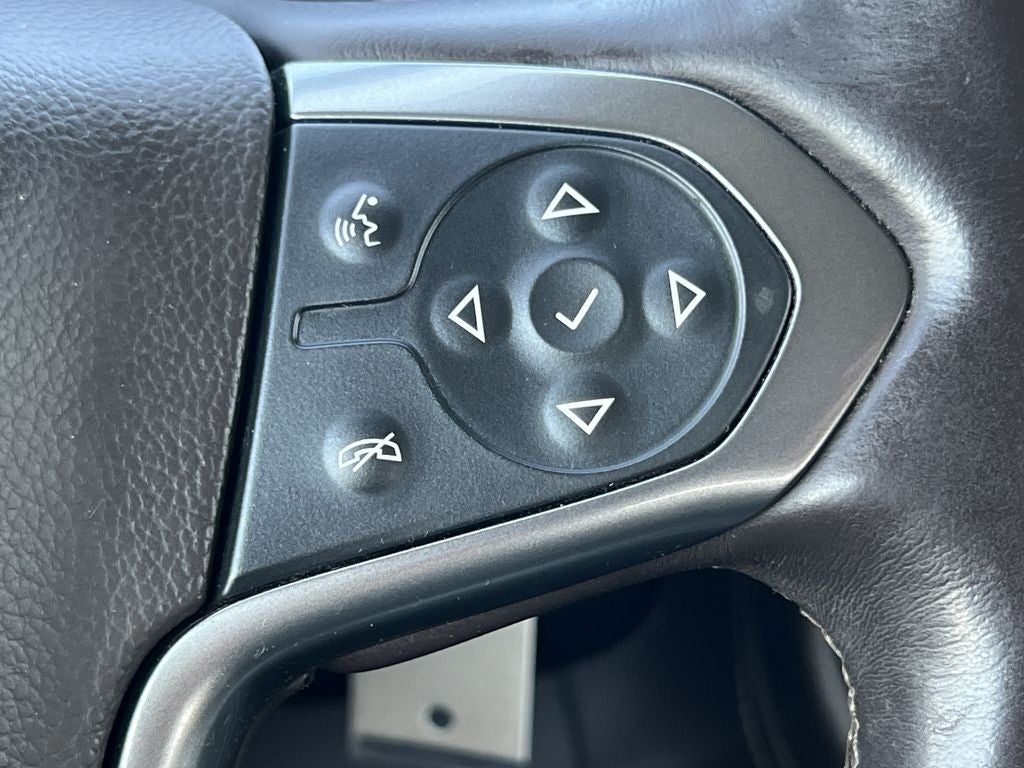

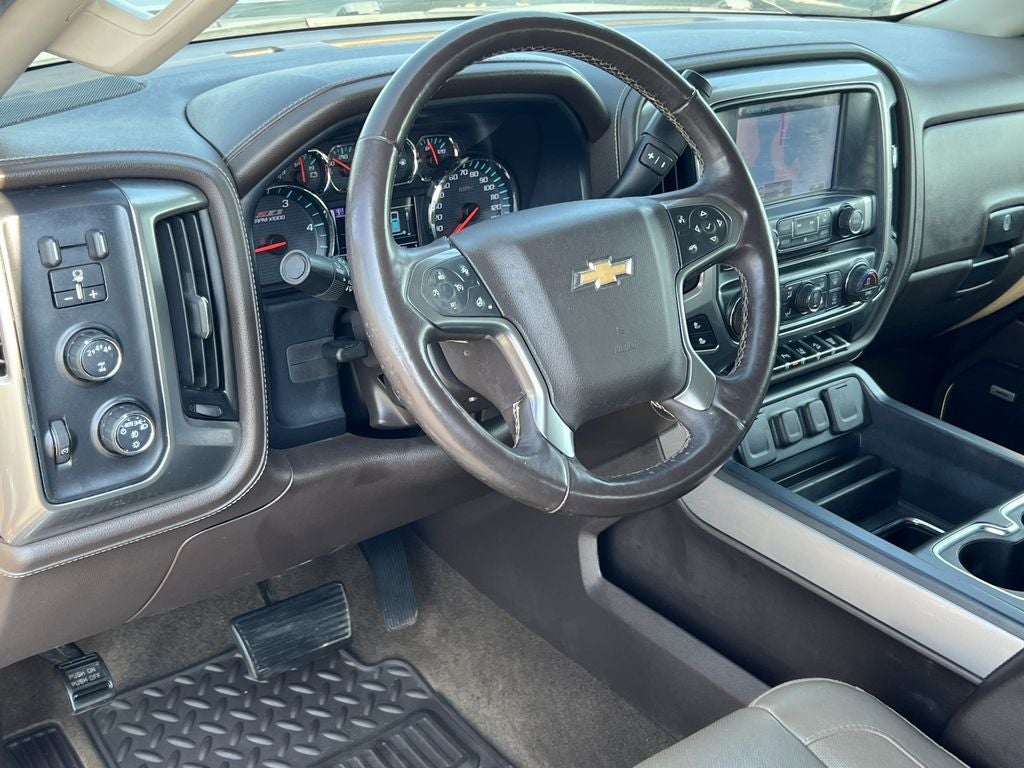

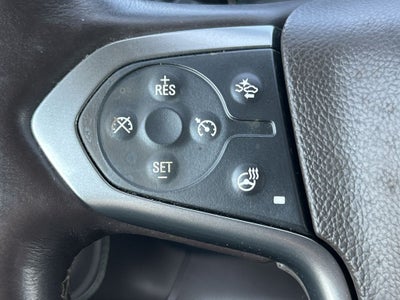

• Steering wheel, leather-wrapped with audio and cruise controls
• Steering wheel audio controls
• Steering column, manual Tilt-Wheel and telescoping

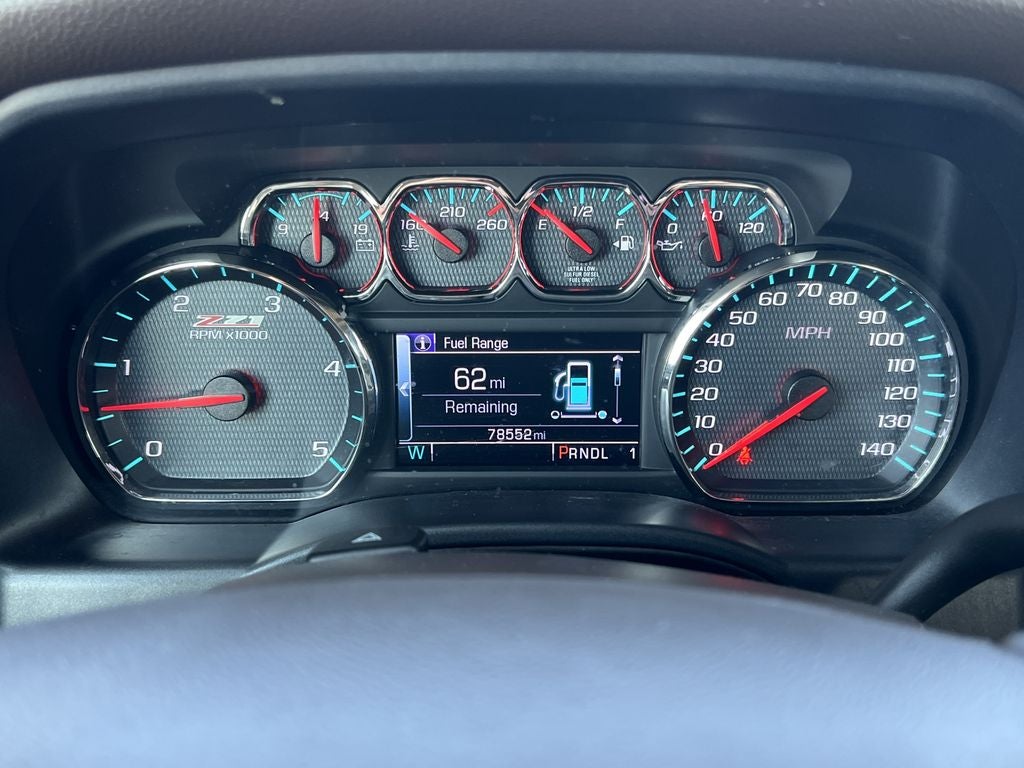

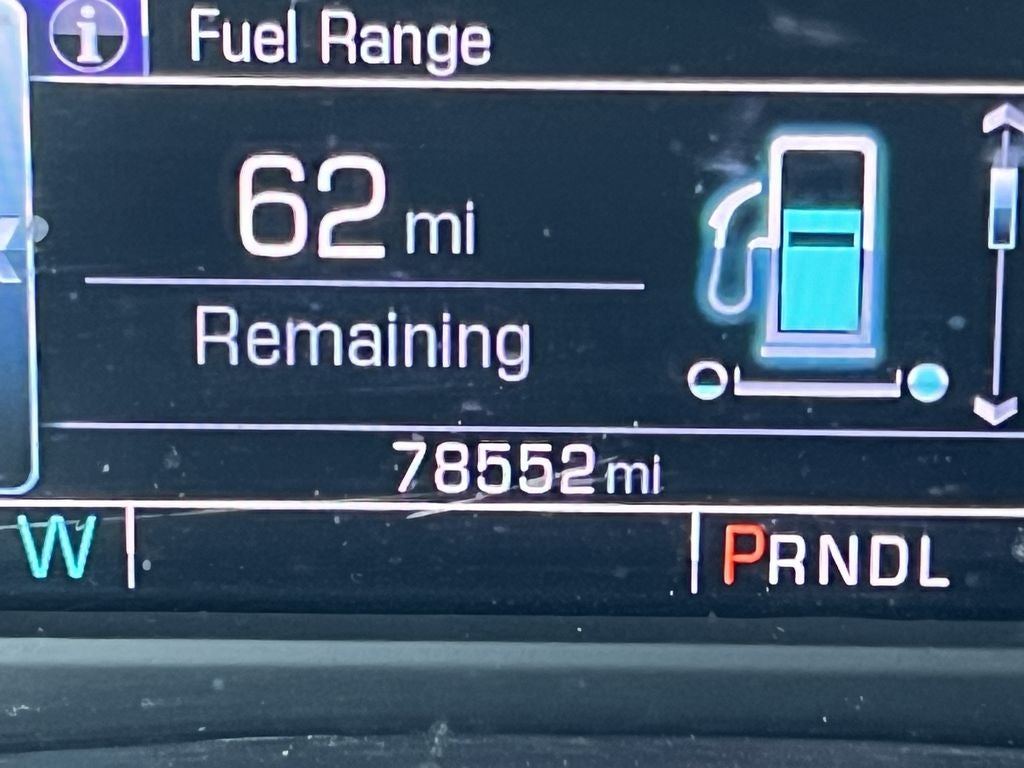

• Driver Information Center 4.2-inch diagonal color display, includes driver personalization, warning messages and vehicle information

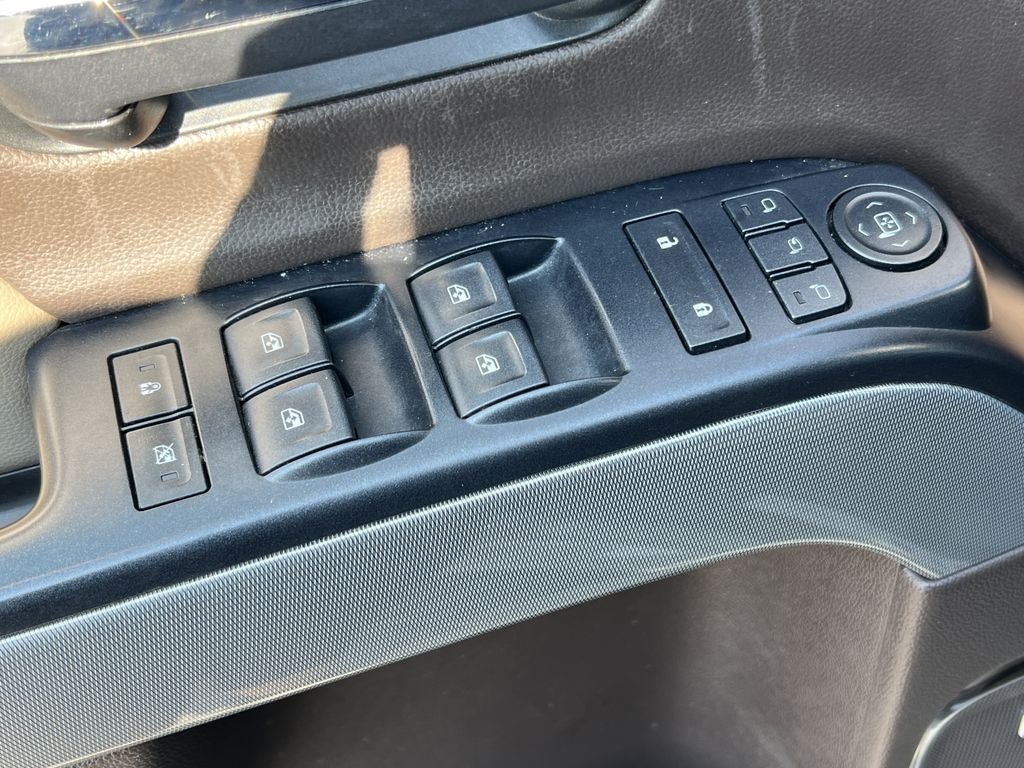

• Windows, power with driver express up and down and express down on all other windows
• Door locks, power
• Remote vehicle starter system

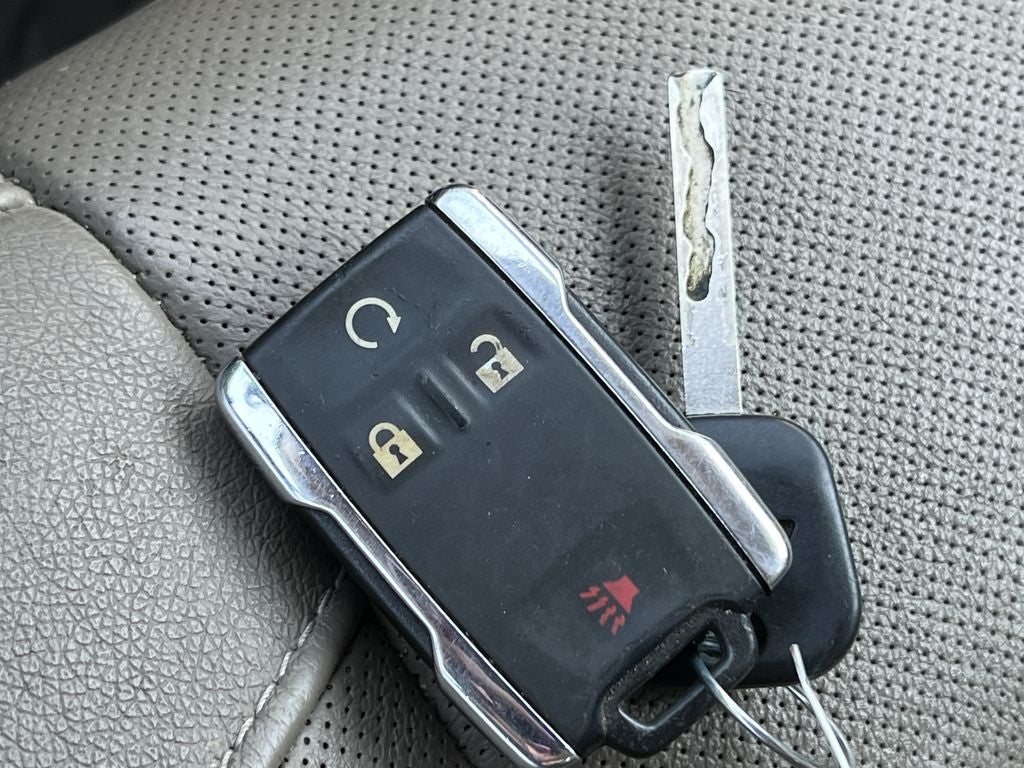

• Remote Keyless Entry

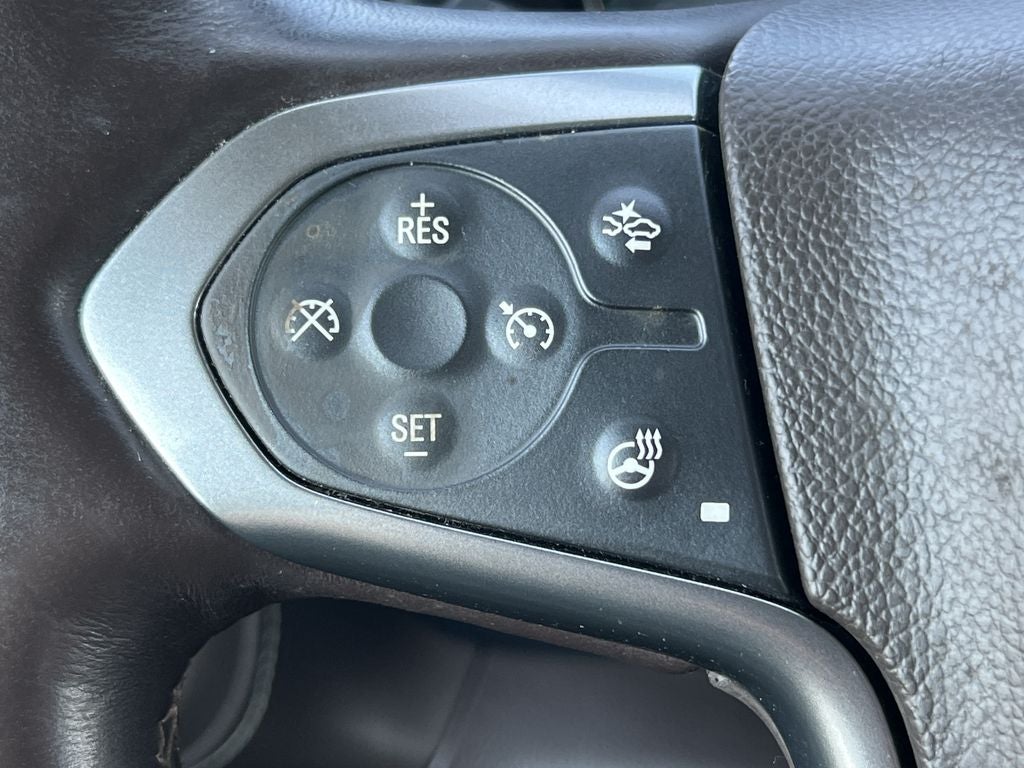

• Cruise control, steering wheel-mounted

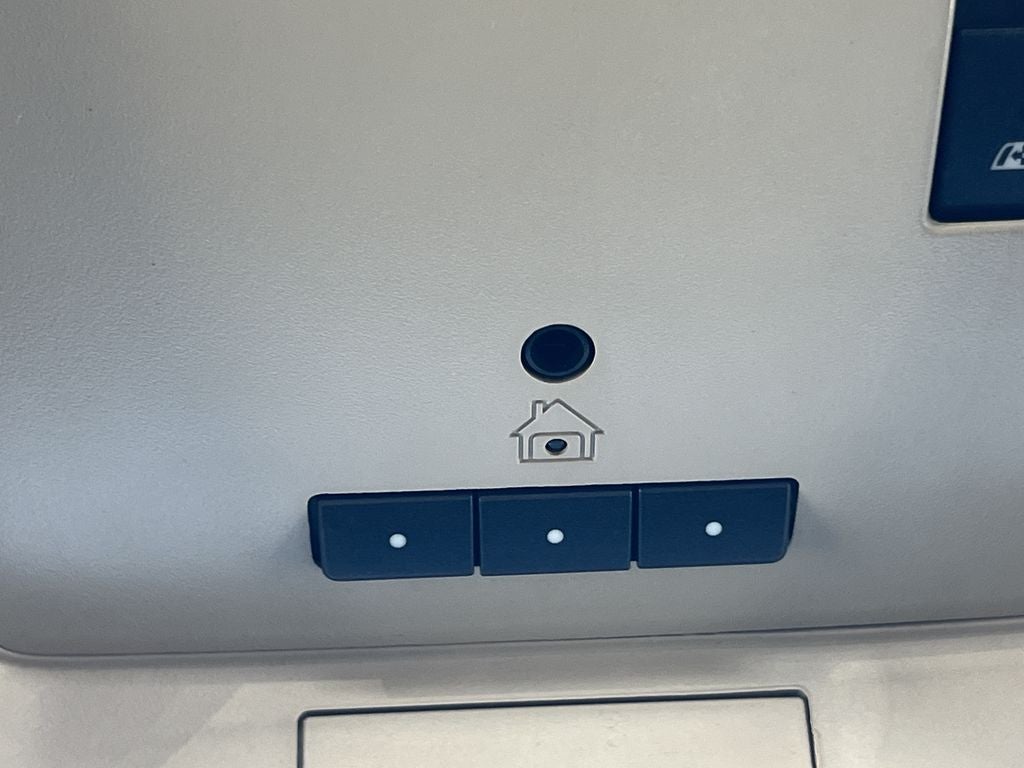

• Universal Home Remote on Crew Cab or Double Cab models (Removed when (TRW) provisions for roof mounted lamp or (VYU) Snow Plow Prep Package is ordered.)
• Theft-deterrent system, unauthorized entry

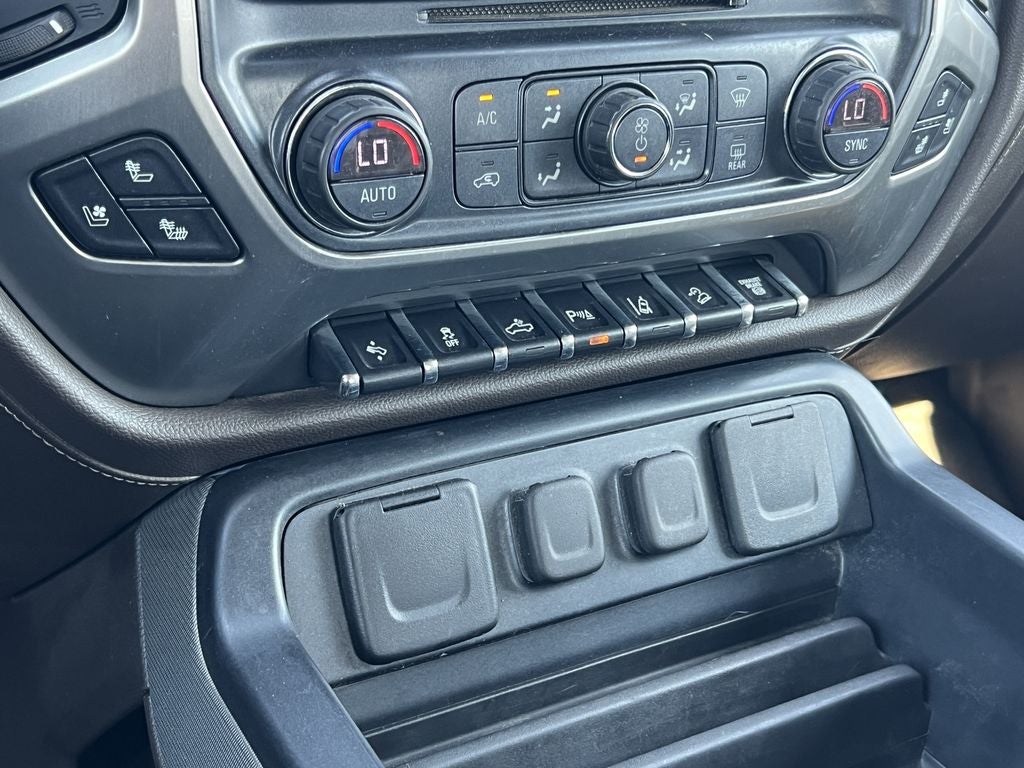

• Air conditioning, dual-zone automatic climate control. Only available on Crew Cab and Double Cab models.
• Defogger, rear-window electric

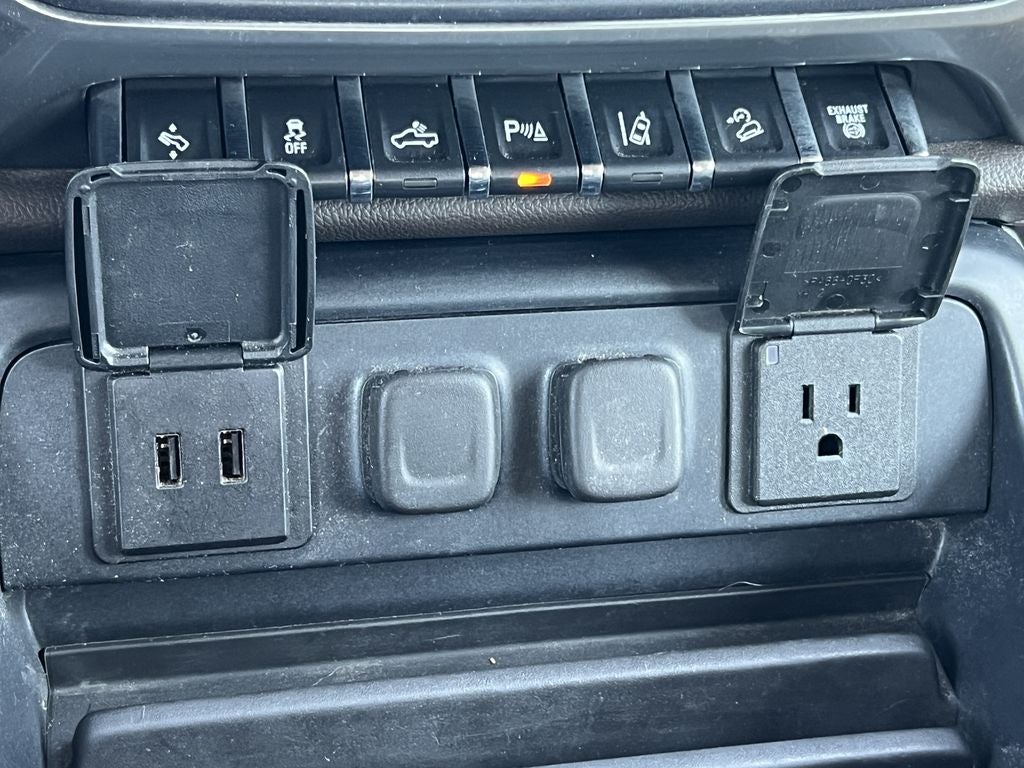

• Power outlet, 110-volt AC
• Mirror, inside rearview auto-dimming
• Visors, driver and front passenger illuminated vanity mirrors
• Assist handle, front passenger and driver on A-pillars

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, single-stage frontal and thorax side-impact, driver and front passenger, and head curtain side-impact, front and rear outboard seating positions (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Airbags, Crew Cab: Single-stage frontal airbags for driver and front outboard passenger (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar Guidance plan for 3 months, including Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance, Turn-by-Turn Navigation and more (trial excludes Hands-Free Calling) for 6 months, including Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance, Turn-by-Turn Navigation and more (trial excludes Hands-Free Calling) (Fleet orders receive a 6-month trial. Visit www.onstar.com for coverage map, details and system limitations. Services vary by model. OnStar acts as a link to existing emergency service providers. Not all vehicles may transmit all crash data.) (Retail orders receive a 3-month trial. Visit www.onstar.com for coverage map, details and system limitations. Services vary by model. OnStar acts as a link to existing emergency service providers. Not all vehicles may transmit all crash data.)

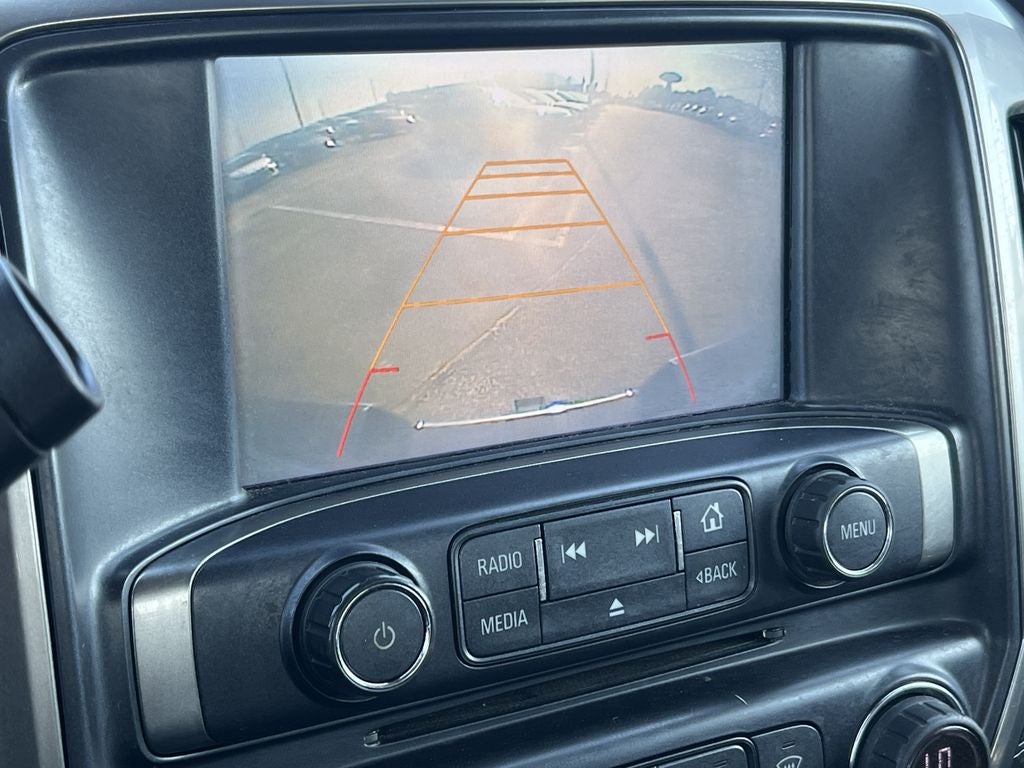

• Rear Vision Camera (Removed when (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.) (Removed when (ZW9) pickup box delete is ordered.)
• Teen Driver mode a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to encourage safe driving behavior. It can limit certain vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report gives you information on your teen's driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System (does not apply to spare tire) (Included and only available with (C7A) 10,000 lb. (4536 kg) GVWR.)

LTZ PLUS PACKAGE, FOR CREW CAB AND DOUBLE CAB

• includes (JF4) power adjustable pedals

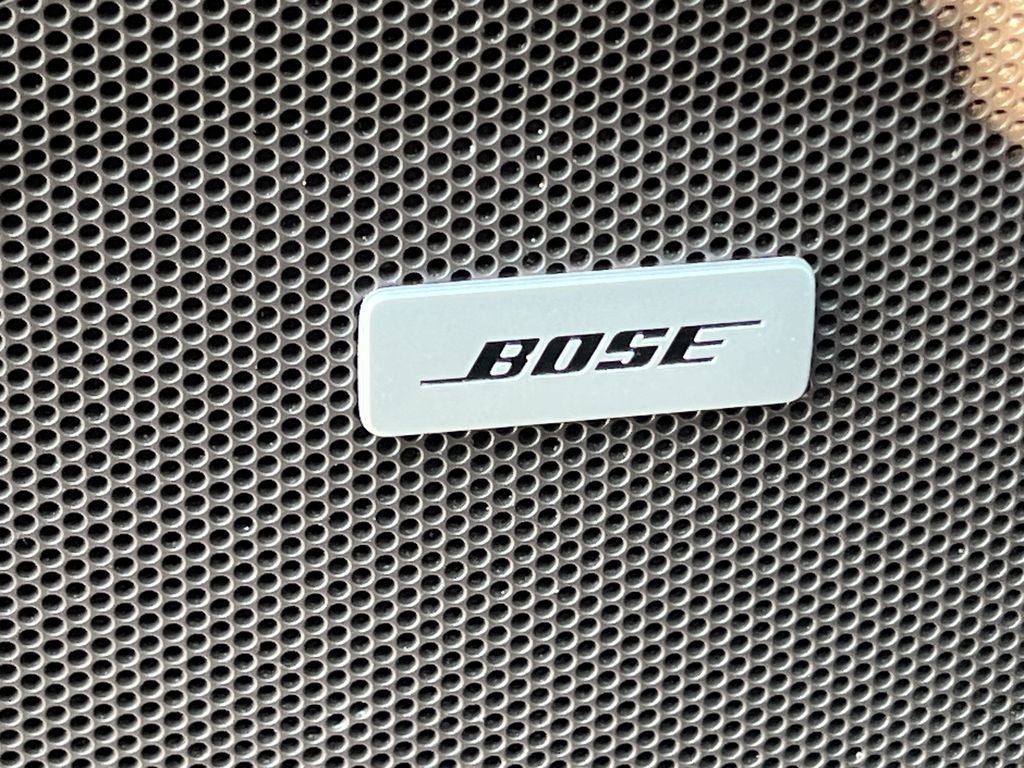

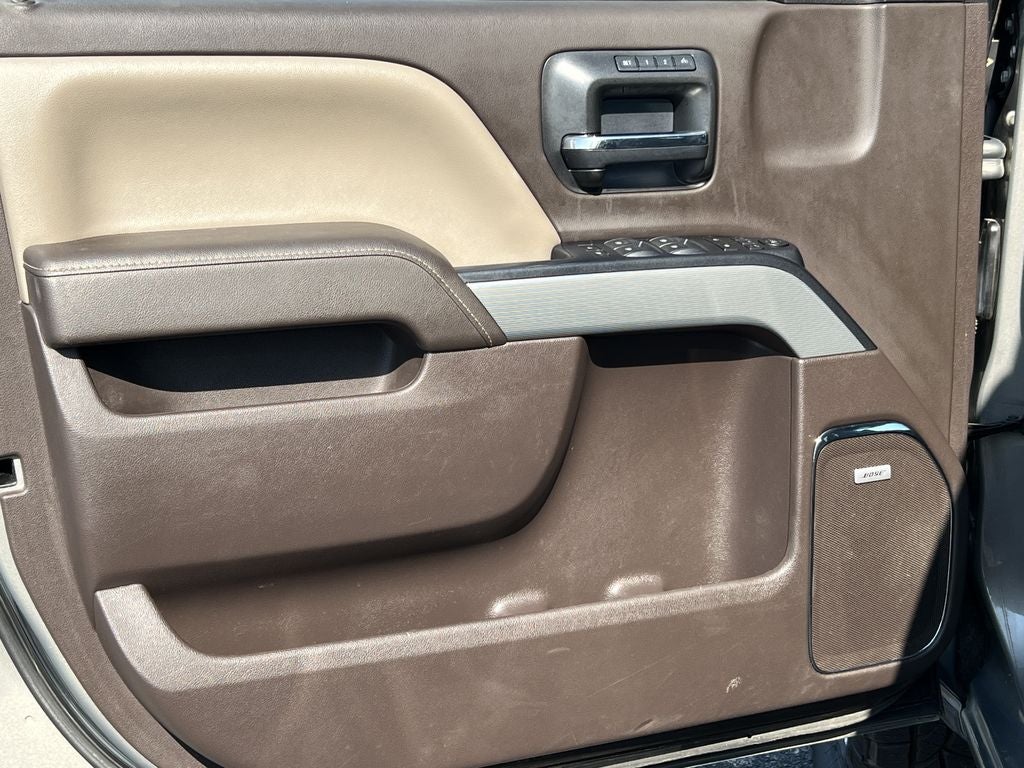

• (UQA) Bose premium audio system
• (UVD) heated leather-wrapped steering wheel and (UD5) Front and Rear Park Assist

DURAMAX PLUS PACKAGE

• includes (L5P) Duramax 6.6L Turbo Diesel V8 engine
• (MW7) Allison 1000 6-speed automatic transmission
• (GT4) 3.73 rear axle ratio
• (K05) engine block heater and (K40) exhaust brake Includes (IO6) Chevrolet MyLink 8" Diagonal Color Touch audio system with Navigation and LTZ Plus Package content.

LTZ PREFERRED EQUIPMENT GROUP

• includes standard equipment

SNOW PLOW PREP PACKAGE

• includes power feed for backup and roof emergency light
• (KW5) 220-amp alternator with gas or diesel engine
• forward lamp wiring harness
• (TRW) provision for cab roof mounted lamp/beacon
• (NZZ) underbody shields and Heavy-Duty front-springs

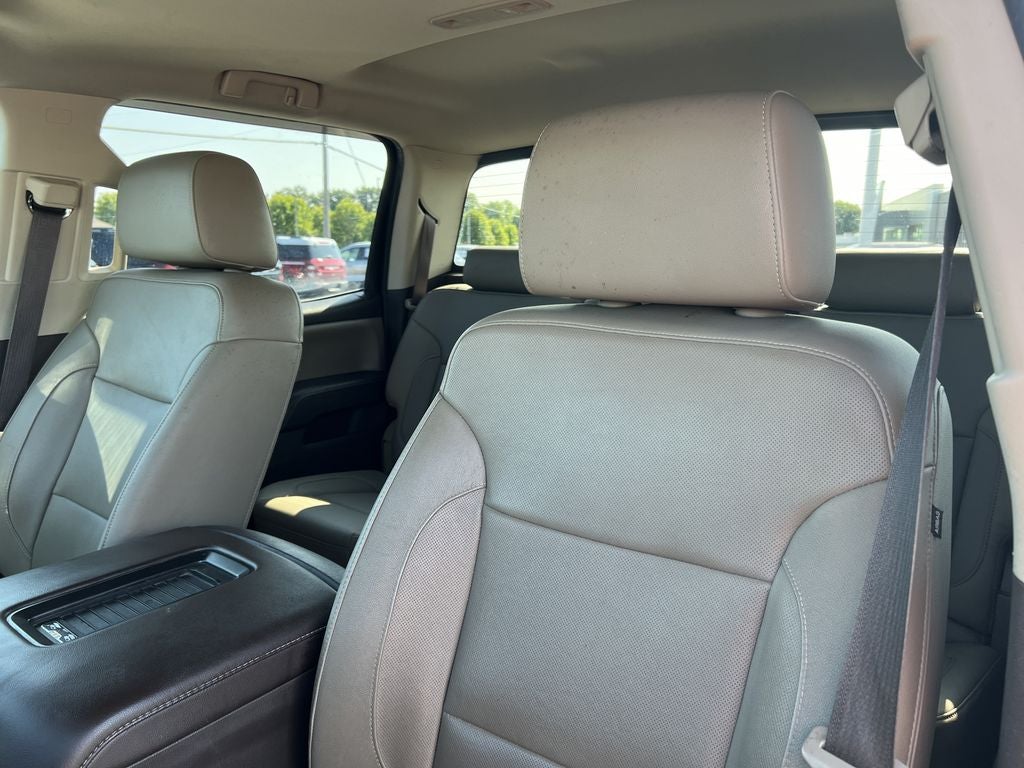

SEATS, FRONT FULL-FEATURE LEATHER-APPOINTED BUCKET WITH (KA1) HEATED SEAT CUSHIONS AND SEAT BACKS.

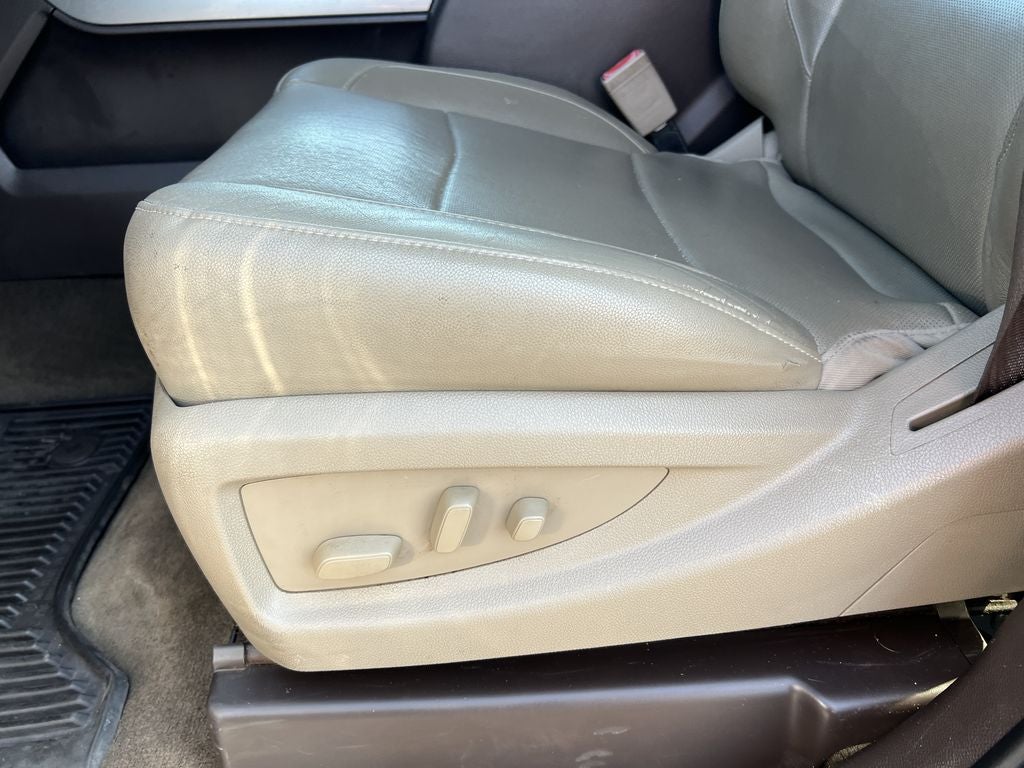

• Includes 10-way power driver and front passenger seat adjusters
• including 2-way power lumbar control

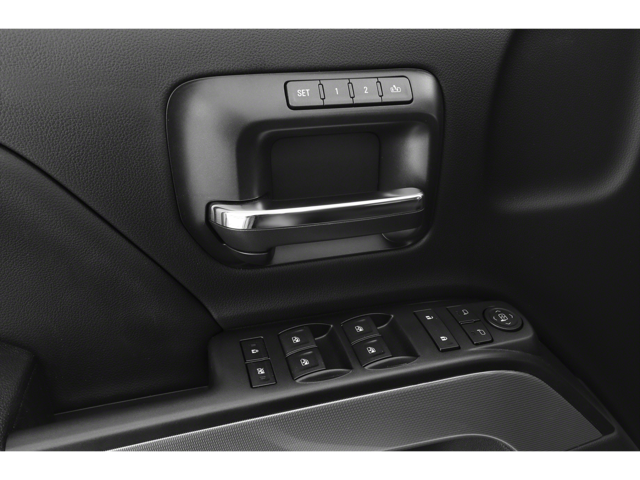

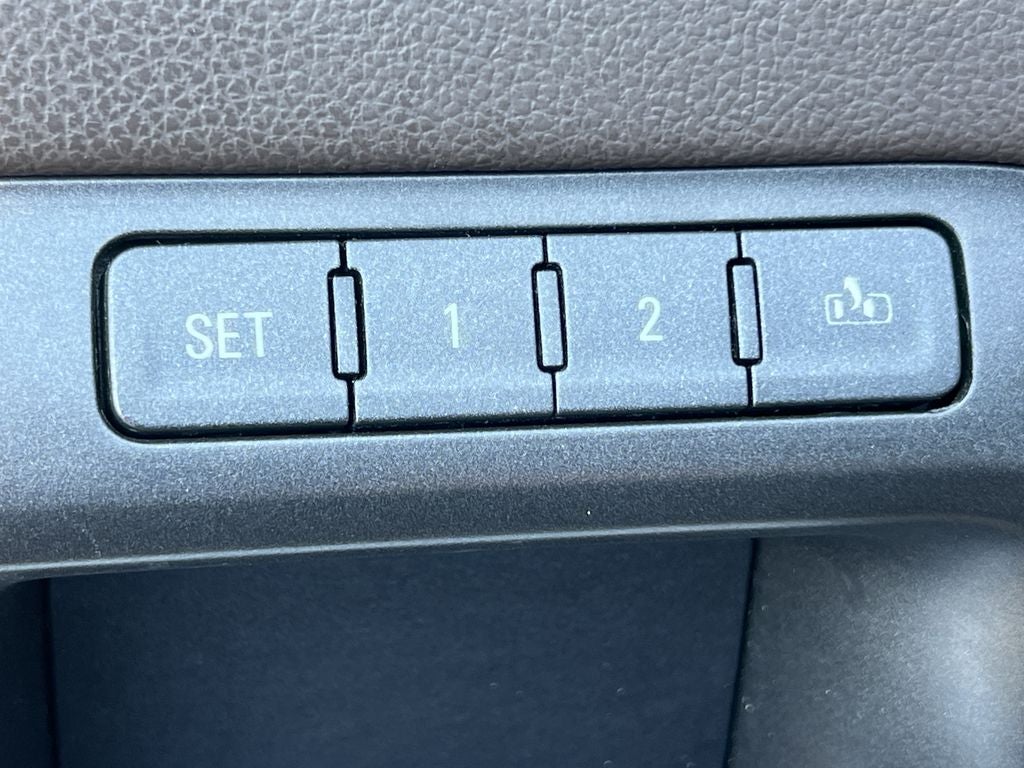

• 2-position driver memory
• adjustable head restraints

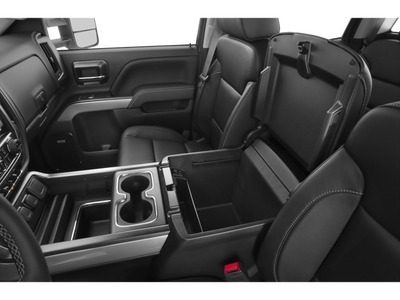

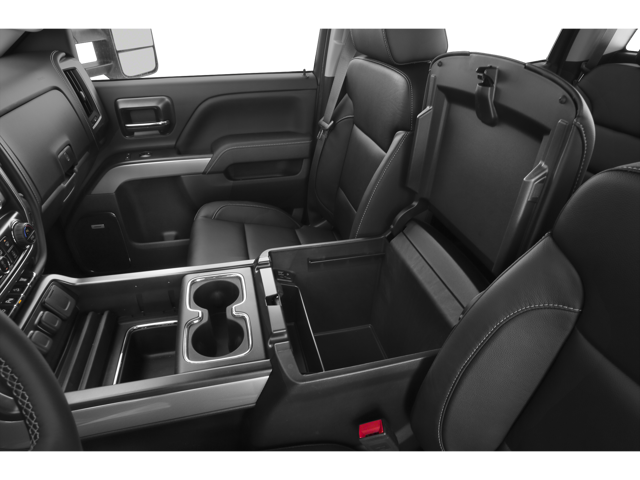

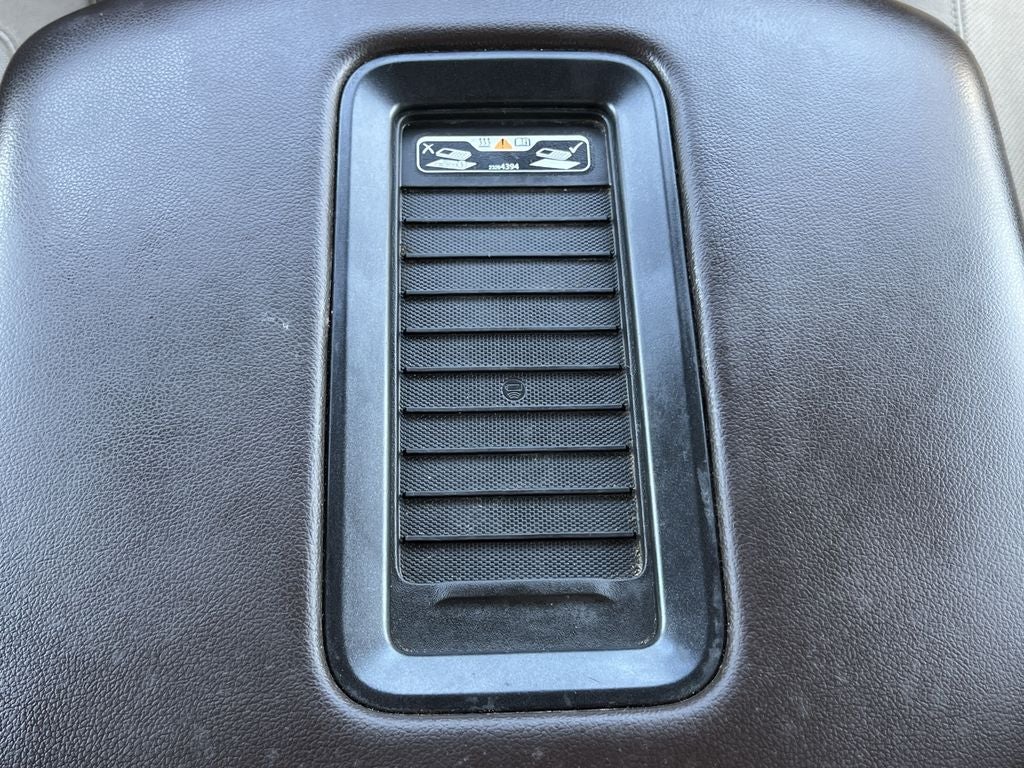

• (D07) floor console storage pockets and (K4C) wireless charging.

AUDIO SYSTEM, CHEVROLET MYLINK RADIO WITH NAVIGATION AND 8" DIAGONAL COLOR TOUCH-SCREEN, AM/FM STEREO

• with seek-and-scan and digital clock
• includes Bluetooth® streaming audio for music and select phones; USB ports; auxiliary jack; voice-activated technology for radio and phone; and Shop with the ability to browse
• select and install apps to your vehicle. Apps include Pandora
• iHeartRadio
• The Weather Channel and more.

UNDERBODY SHIELD, FRAME-MOUNTED SHIELDS

• includes front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case

PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON

• provides an instrument panel-mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp

• LTZ Plus Package: Leather Wrapped Heated Steering Wheel; Bose 6 Speaker Sound System; Power Adjustable Pedals; Leather Wrapped Heated Steering Wheel; Bose 6 Speaker Sound System; Ultrasonic Front and Rear Park Assist; Power Adjustable Pedals; Leather Wrapped Heated Steering Wheel; Bose 6 Speaker Sound System; Ultrasonic Front and Rear Park Assist; Power Adjustable Pedals
• Duramax Plus Package: Engine Block Heater; Chevrolet MyLink Radio with Navigation; Duramax 6.6L Turbo Diesel V8 Engine; 3.73 Rear Axle Ratio; Allison 1000 6-Speed Automatic Transmission with Overdrive; Engine Block Heater; Chevrolet MyLink Radio with Navigation; Duramax 6.6L Turbo Diesel V8 Engine; 3.73 Rear Axle Ratio; Allison 1000 6-Speed Automatic Transmission with Overdrive
• Preferred Equipment Group 1LZ: EZ-Lift and Lower Tailgate; Chrome Door Handles; Rear Vision Camera; Rear 60/40 Folding Bench Seat (folds Up); Leather-Appointed Seat Trim; Remote Vehicle Starter System; Power Sliding Rear Window with Defogger; Electric Rear-Window Defogger; Unauthorized Entry Theft-Deterrent System; Chevrolet MyLink Audio System; 4.2" Diagonal Color Display Driver Info Center; Trailering Equipment; 6-Speaker Audio System; 110-Volt AC Power Outlet; Front Halogen Fog Lamps; Remote Locking Tailgate; 150 Amps Alternator; Steering Wheel Audio Controls; Universal Home Remote; Color-Keyed Carpeting Floor Covering; Power Windows; OnStar Guidance Plan For 3 Months; Remote Keyless Entry; Electronic Shift Transfer Case; Single-Slot CD/MP3 Player; Deep-Tinted Glass; Chrome Power-Adjustable Heated Outside Mirrors; Dual-Zone Automatic Climate Control; 18" Chromed Aluminum Wheels; SiriusXM Satellite Radio; Digital Steering Assist; Leather-Wrapped Steering Wheel; Manual Tilt-Wheel/telescoping Steering Column; Driver and Front Passenger Visors; OnStar with 4G LTE; Front 40/20/40 Split Bench Seat; Auto-Dimming Inside Rearview Mirror; Rear Wheelhouse Liners; Chrome Bodyside Moldings
• Snow Plow Prep Package: 220 Amp Alternator; Provision For Cab Roof-Mounted Lamp/beacon; Heavy Duty Front Springs; 220 Amp Alternator; Provision For Cab Roof-Mounted Lamp/beacon; Heavy Duty Front Springs; Underbody Shield

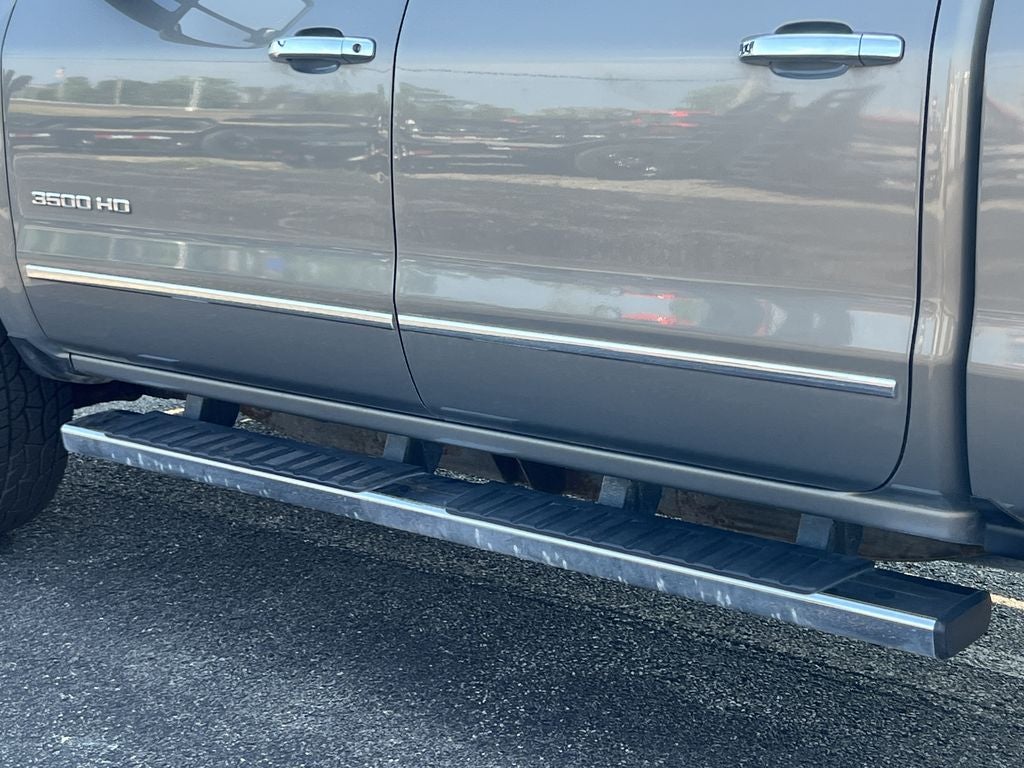

• 6" Rectangular Chromed Assist Steps

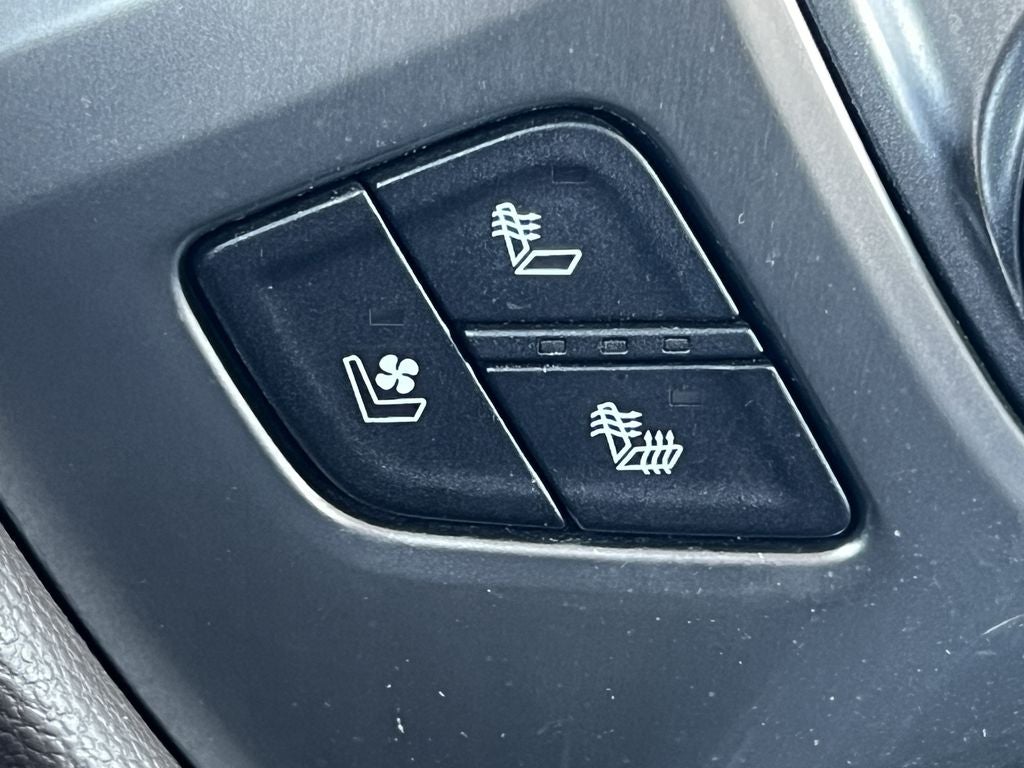

• Heated and Vented Front Seating

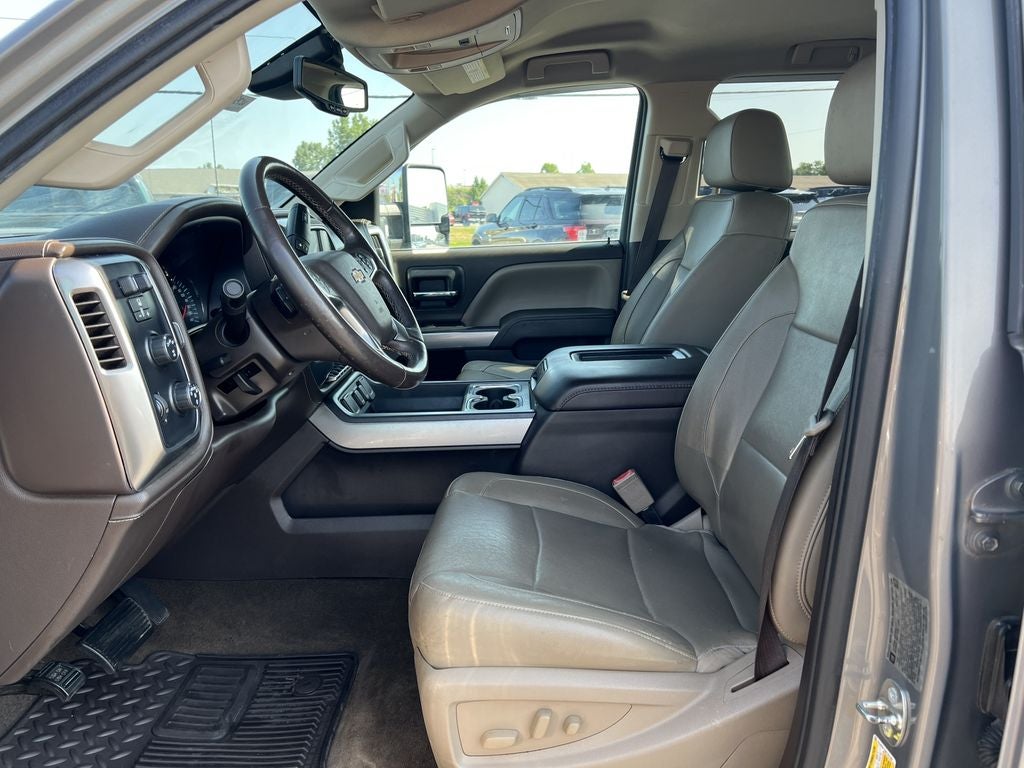

• Front Full Feature Bucket Seats

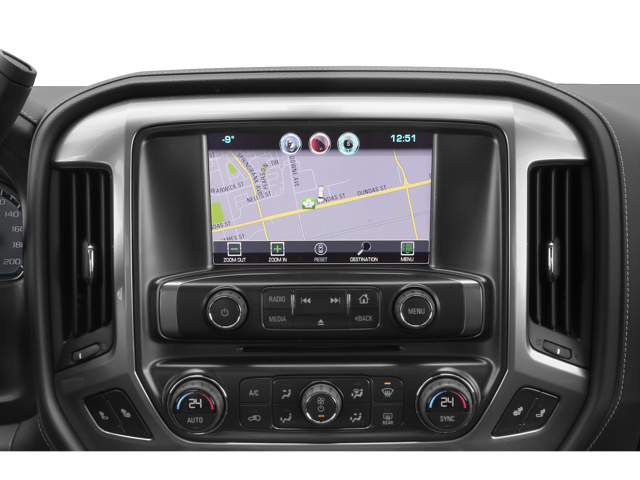

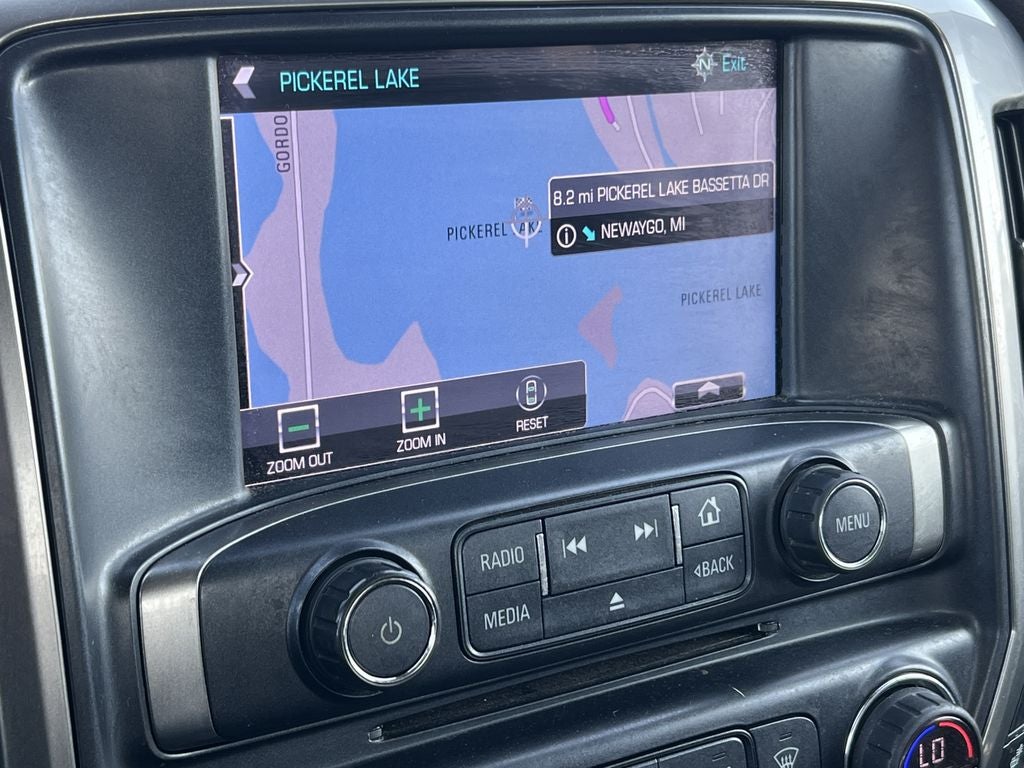

• Chevrolet MyLink Radio with Navigation
• Single-Stage Frontal Driver and Front Outboard Passenger Airbags
• Ultrasonic Front and Rear Park Assist

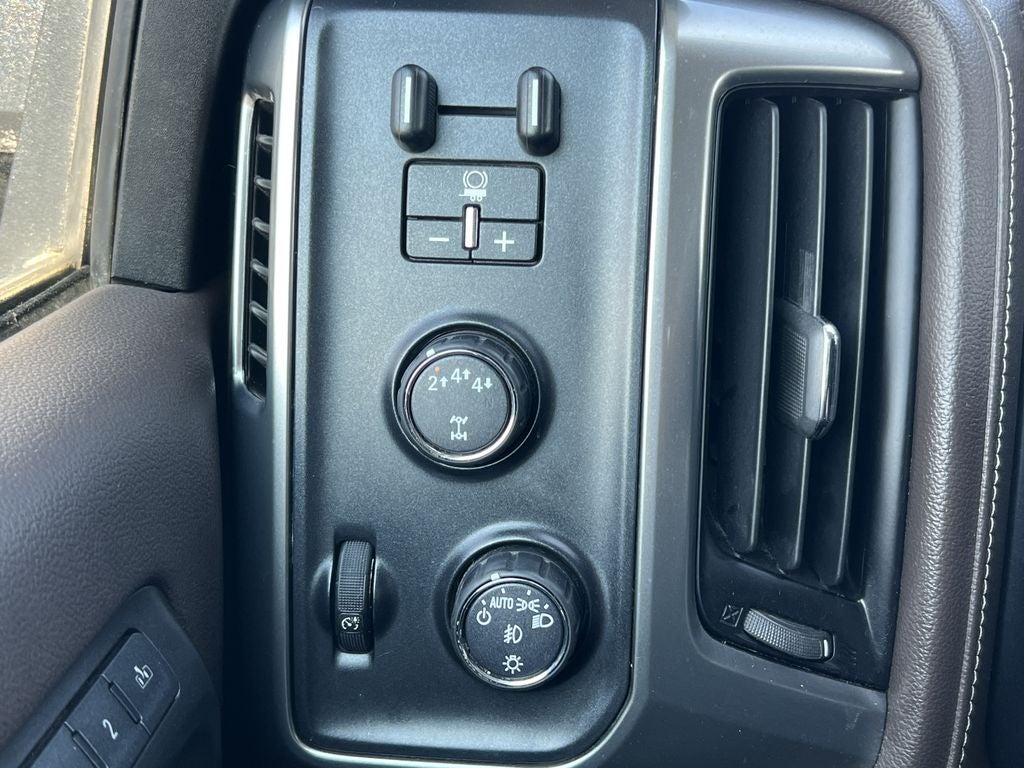

• Integrated Trailer Brake Controller
• Chrome Recovery Hooks

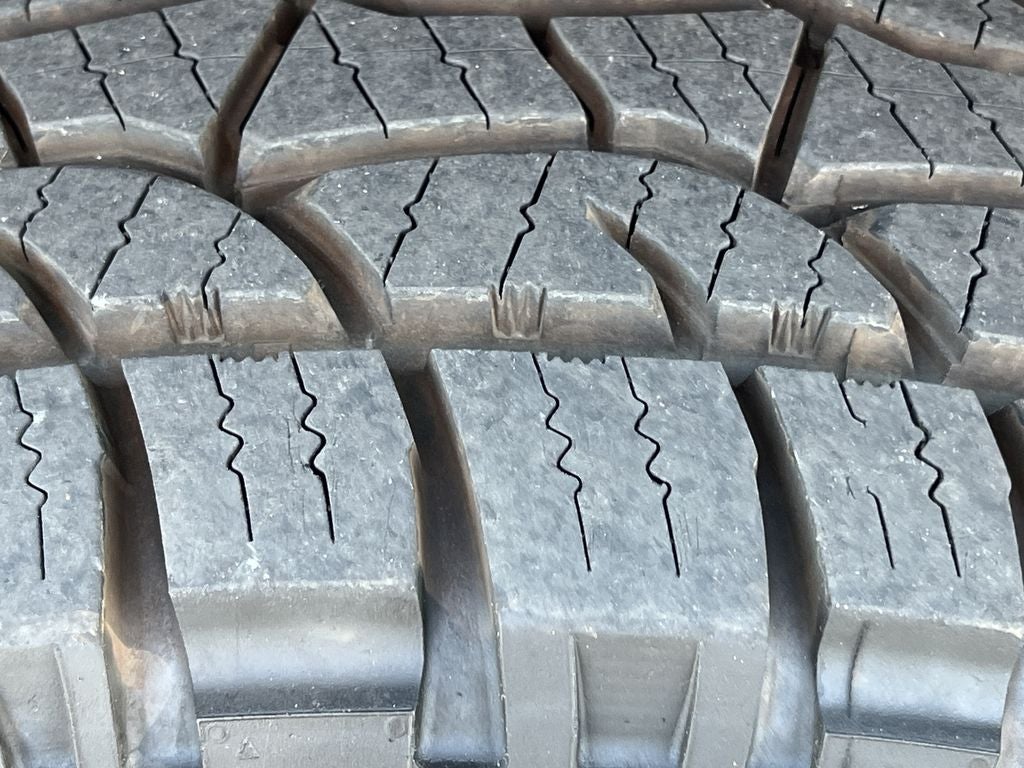

• LT265/70R18E AT BW Tires
• Underbody Shield
• 3.73 Rear Axle Ratio
• Provision For Cab Roof-Mounted Lamp/beacon
• OnStar 4G LTE mobile hotspot internet access
• Brake assist system
• Cruise control with steering wheel mounted controls
• Ventilated driver and front passenger seats
• Integrated navigation system with voice activation
• Keyfob remote start

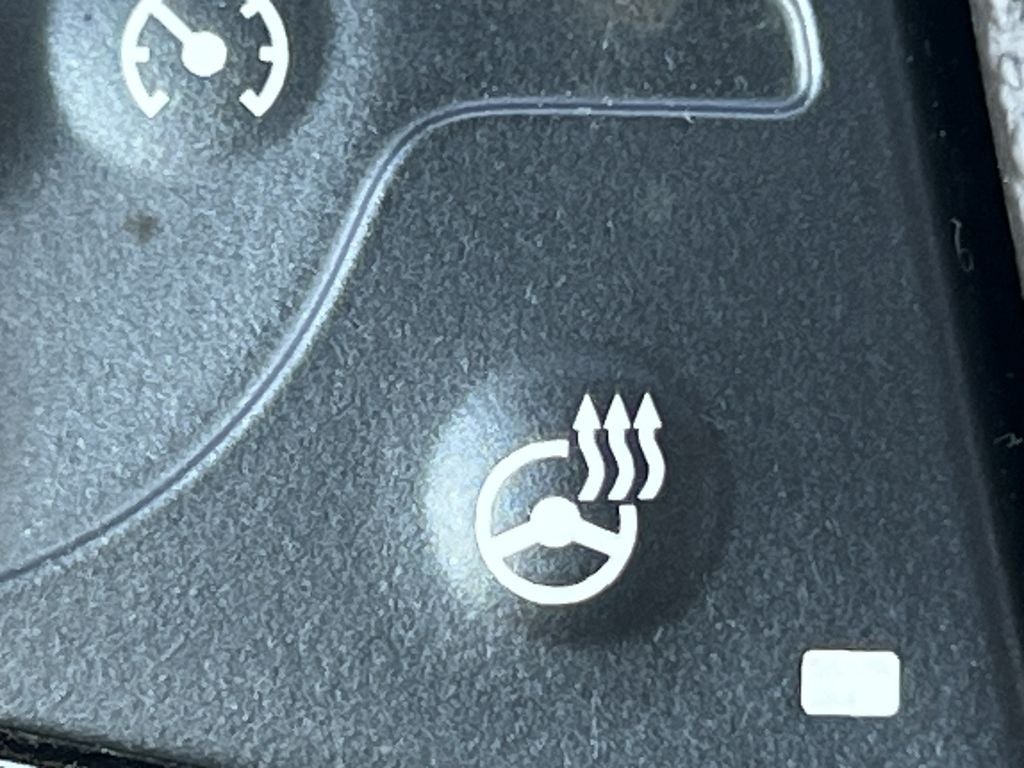

• Heated steering wheel
• Heated driver and front passenger seats
• Leather front seat upholstery
• Primary monitor touchscreen
• Driver seat power reclining
• lumbar support
• cushion tilt
• fore/aft control and height adjustable control
• Part-time 4WD

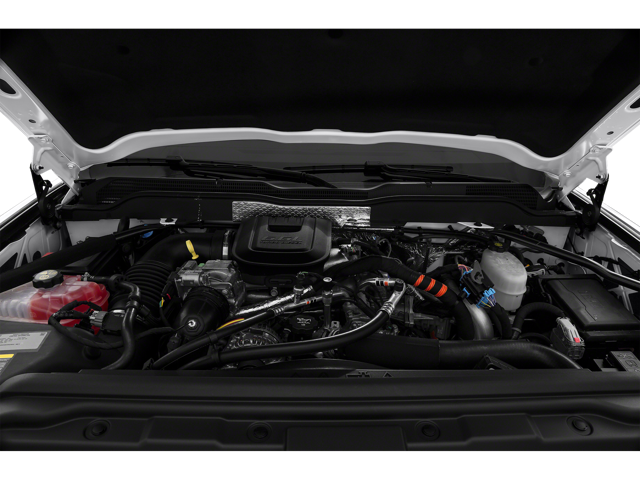

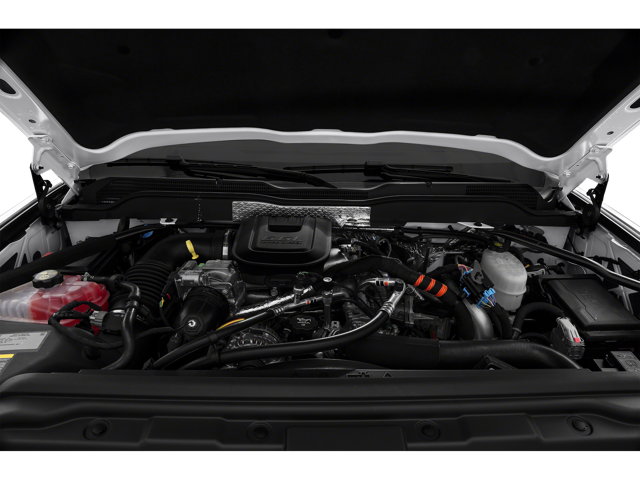

• Duramax 6.6L V-8 diesel direct injection
• intercooled turbo
• diesel
• engine with 445HP
• Duramax 6.6L V-8

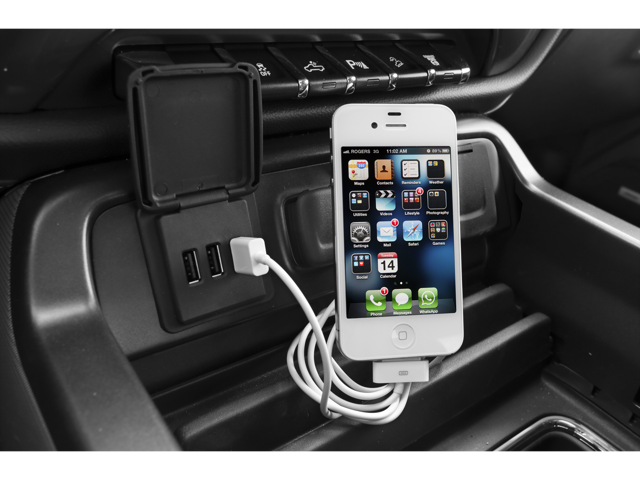

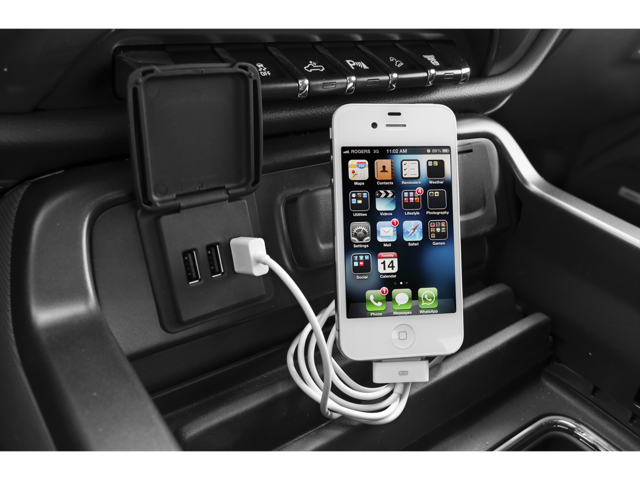

• Front wireless smart device charging
• Restricted driving mode/alerts
• Smart device remote start
• Mechanical
• OnStar Guidance vehicle tracker with vehicle slowdown
• Wireless audio streaming
• Dual-zone front climate control
• Immobilizer
• Bose speakers
• OnStar Guidance vehicle integrated emergency SOS system
• Bluetooth® handsfree wireless device connectivity
• OnStar RemoteLink smart device app link
• Trailer sway control
• Chevrolet MyLink external memory control
• Pandora internet radio capability
• Electronic stability control system with anti-roll
• Hill start assist
• Automatic climate control
• UltraSonic front and rear parking sensors
• Front fog lights
• Leather and metal-look steering wheel
• EZ Lift
• EZ Lower
• Manual rear child safety door locks
• Heated driver and passenger side door mirrors
• Power folding door mirrors
• Driver selectable steering effort
• Manual tilting steering wheel
• Manual telescopic steering wheel
• Metallic paint
• Manual extendable trailer mirrors
• Power adjustable pedals
• Exterior mirror LED spot lights
• Upfitter switches
• 18 x 8-inch front and rear chrome aluminum wheels
• LT265/70SR18 AT BSW front and rear tires

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 7050
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 10000
• Gross Combined Wt Rating (lbs): 21100
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1300
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 13900
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3475
• Maximum Trailering Capacity (lbs): 17200
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 7050
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 7050
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 3.73
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51.00
• Shock Absorber Diameter - Rear (mm): 51.00
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.8 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QGM
• Front Tire Order Code: QWF
• Rear Tire Order Code: QGM
• Rear Tire Order Code: QWF
• Front Tire Size: LT265/70R18E
• Rear Tire Size: LT265/70R18E
• Front Tire Capacity (lbs): 5600
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Wheels
• Front Wheel Size (in): 18 x 8.0
• Rear Wheel Size (in): 18 x 8.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: 16.00
• Steering Ratio (:1), At Lock: N/A
• Turning Diameter - Curb to Curb (ft): 51.8
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 153.70
• Length, Overall w/o rear bumper (in): 239.5
• Width, Max w/o mirrors (in): 80.51
• Height, Overall (in): 78.15
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 151.10
• Cab to Axle (in): 41.26
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 39.33
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.42

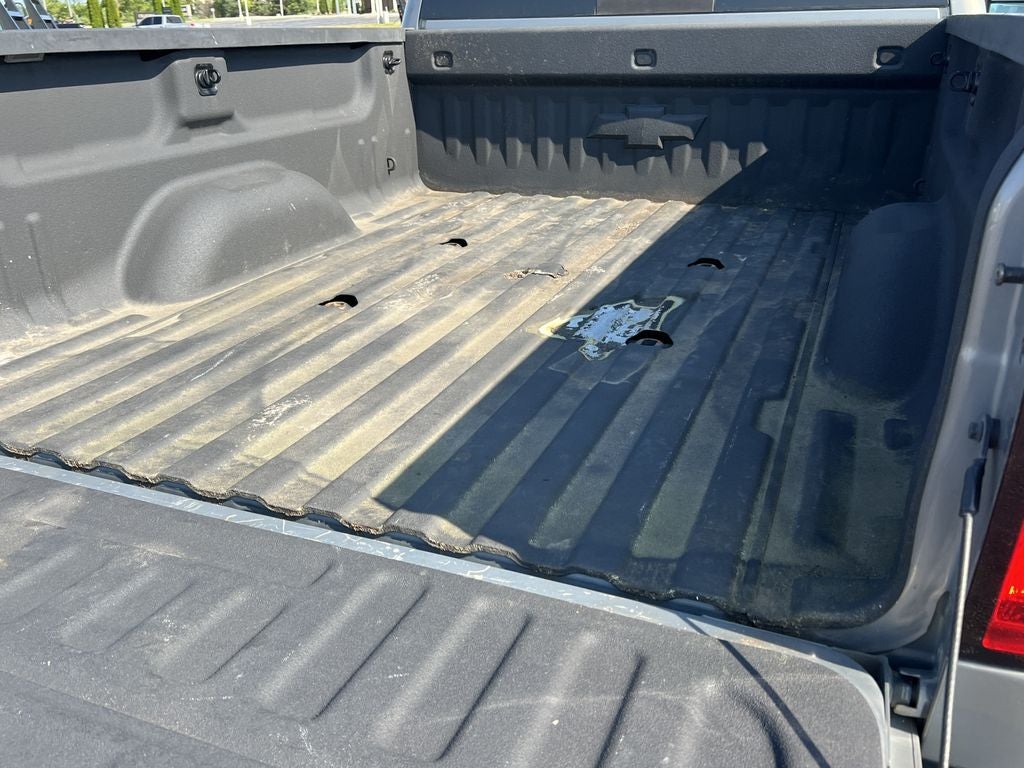

• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.86
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 51.02
• Cargo Box (Area) Height (in): 21.22
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 61.0
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Front Hip Room (in): 60.73
• Second Head Room (in): 40.50
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 64.33
• Second Hip Room (in): 60.24
• Summary

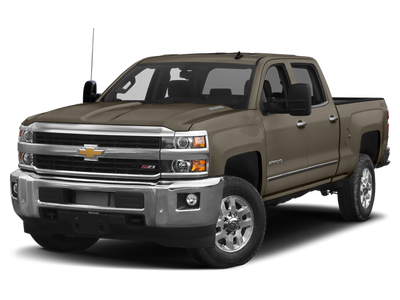

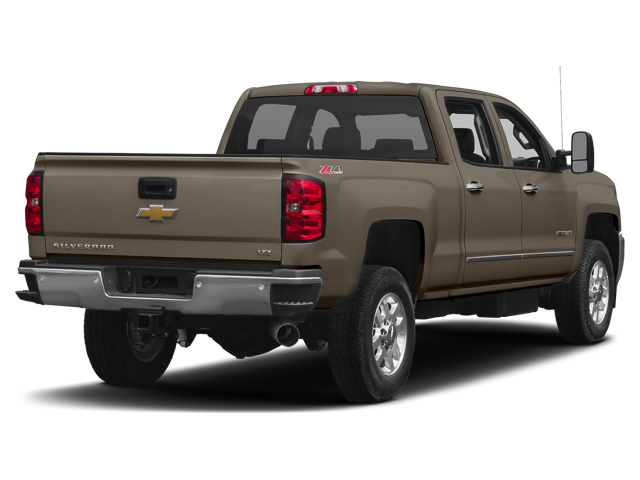

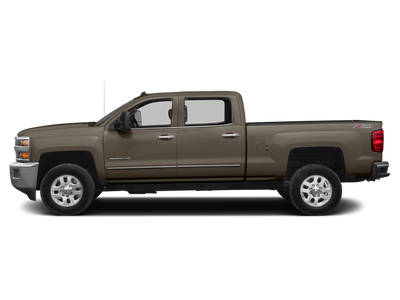

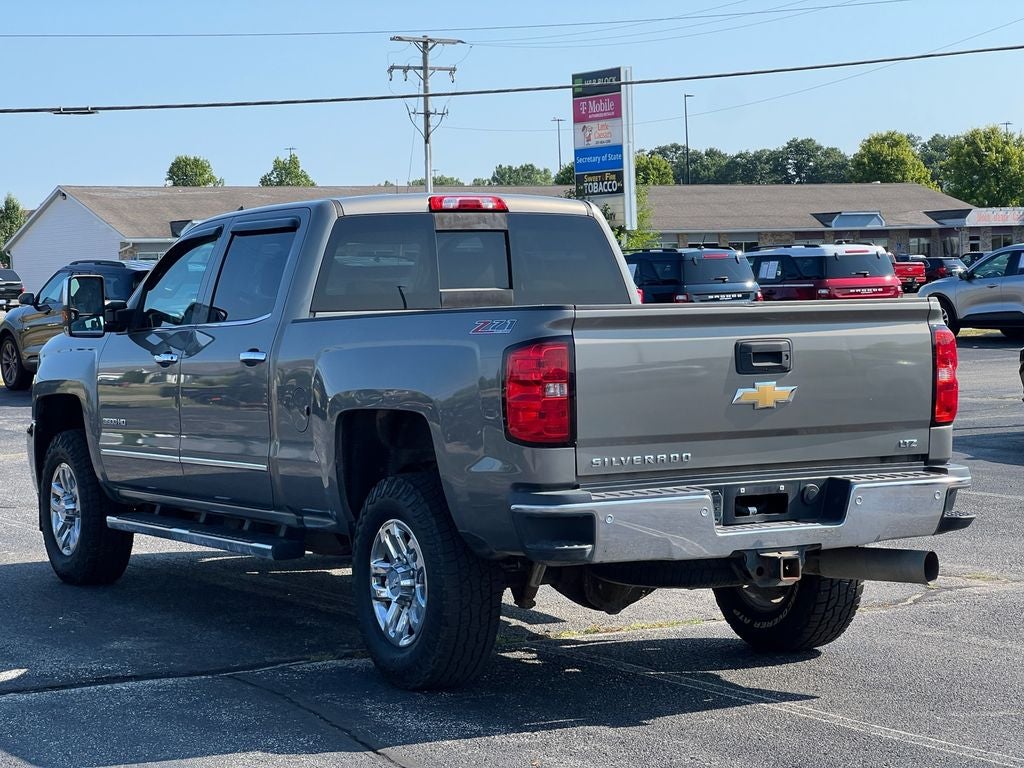

• Vehicle Name: Chevrolet Silverado 3500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
